ADL5502ACBZ-P7 - Analog Devices

Description: RF Detector IC Cellular, CDMA2000, OFDM, W-CDMA 450MHz ~ 6GHz -15dBm ~ 12dBm ±0.25dB 8-UFBGA, WLCSP

Download ADL5502ACBZ-P7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

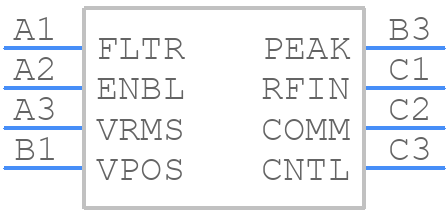

Symbol
ADL5502ACBZ-P7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5502ACBZ-P7 - Analog Devices PCB footprint - BGA - BGA - CB-8-3
click to zoom
3D Models
ADL5502ACBZ-P7 - Analog Devices - 3D model - BGA - CB-8-3
click to zoom

ADL5502ACBZ-P7 Details

  • Manufacturer Part Number:

    ADL5502ACBZ-P7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CB-8-3

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    1.46 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.46 mm

ADL5502ACBZ-P7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply lines.
  • The ADL5502ACBZ-P7 requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The input bias voltage should be set to 2.5V using a voltage divider or a dedicated voltage reference.
  • The ADL5502ACBZ-P7 can handle input signal amplitudes up to 2.5Vpp. Exceeding this limit may result in distortion and reduced accuracy.
  • Calibration involves trimming the internal offset and gain of the device. Use a precision voltage source and a multimeter to measure the output voltage. Adjust the trim pins (TRIM1 and TRIM2) to achieve the desired output voltage.
  • The ADL5502ACBZ-P7 has a thermal derating of 2.5mW/°C above 25°C. Ensure proper heat sinking and thermal management to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5502ACBZ-P7 Overview

Use the download button to access the ADL5502ACBZ-P7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL55, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
