ADL5513ACPZ-WP - Analog Devices

Description: ANALOG DEVICES - ADL5513ACPZ-WP - IC, LOG DEMOD AMP, 1M-4GHZ, 16LFCSP

Download ADL5513ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

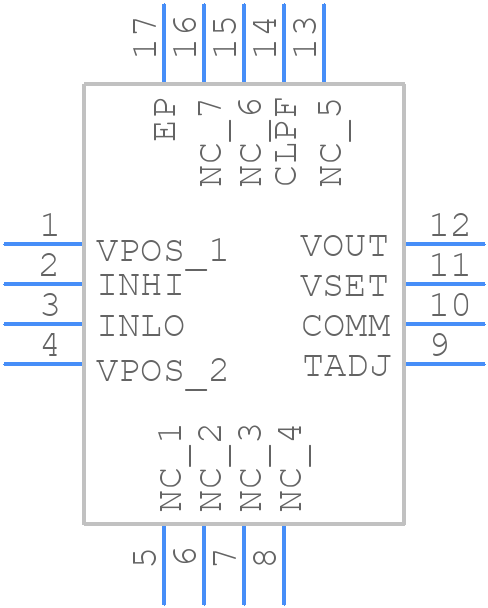

ADL5513ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5513ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-3 (LFCSP)
click to zoom
3D Models
ADL5513ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-3 (LFCSP)
click to zoom

ADL5513ACPZ-WP Details

  • Manufacturer Part Number:

    ADL5513ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    4000 MHz

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADL5513ACPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5513ACPZ-WP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure proper biasing, the ADL5513ACPZ-WP requires a stable voltage supply between 4.5V and 5.5V. The device's VCC pin should be decoupled with a 10uF capacitor to ground, and the EN pin should be tied to a logic high (VCC) to enable the device. Additionally, the input pins should be biased within the recommended common-mode voltage range.
  • The maximum power dissipation of the ADL5513ACPZ-WP is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 1.44W at 25°C ambient temperature, assuming a thermal resistance of 30°C/W. However, this value can be derated for higher ambient temperatures.
  • The ADL5513ACPZ-WP is rated for operation up to 125°C junction temperature. However, the device's performance may degrade at higher temperatures, and the maximum power dissipation should be derated accordingly. It is recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specifications in high-temperature environments.
  • Common issues with the ADL5513ACPZ-WP can often be attributed to poor PCB layout, inadequate decoupling, or incorrect biasing. To troubleshoot, ensure the PCB layout follows the recommended guidelines, and check for proper decoupling and biasing. Additionally, verify that the input and output signals are within the recommended specifications, and check for any signs of overheating or thermal issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5513ACPZ-WP Overview

Use the download button to access the ADL5513ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL55, or try a keyword search, such as Analog Computational Functions

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
