ADL5531ACPZ-R7 - Analog Devices

Description: IF Gain Block

Download ADL5531ACPZ-R7 Model
Schematic
symbols

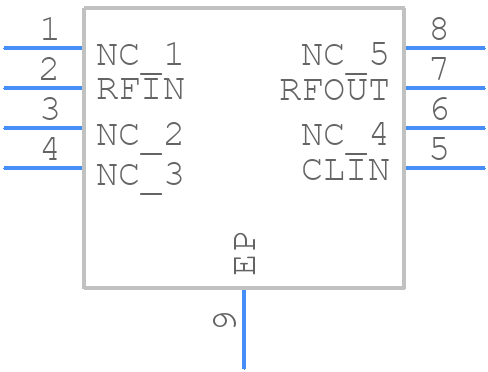

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5531ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-13
click to zoom
3D Models
ADL5531ACPZ-R7 - Analog Devices  - 3D model - Small Outline No-lead - CP-8-13
click to zoom

ADL5531ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5531ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3X2 MM, ROHS COMPLIANT, LFCSP, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19.7 dB

  • Input Power-Max (CW):

    12 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    20 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    NARROW BAND MEDIUM POWER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

ADL5531ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common-mode choke or a ferrite bead to filter the power supply lines.
  • The ADL5531ACPZ-R7 requires a bias voltage of 5V ± 10% and a bias current of 10mA ± 10%. Ensure the bias voltage is well-regulated and decoupled with a 10uF capacitor to minimize noise and ripple.
  • The ADL5531ACPZ-R7 can handle input powers up to +20dBm (100mW) without damage. However, the maximum input power for optimal performance is +15dBm (30mW).
  • To optimize the ADL5531ACPZ-R7 for low noise figure, ensure the input is matched to 50 ohms, use a high-quality, low-noise bias voltage, and minimize the length of the input traces. Additionally, use a noise-reducing component, such as a ferrite bead, on the power supply lines.
  • The recommended operating temperature range for the ADL5531ACPZ-R7 is -40°C to +85°C. However, the device can operate up to +125°C with reduced performance and reliability.
