ADL5562ACPZ-R7 - Analog Devices

Description: RF/IF Differential Amplifier 1 Circuit Differential 16-LFCSP-VQ (3x3)

Download ADL5562ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

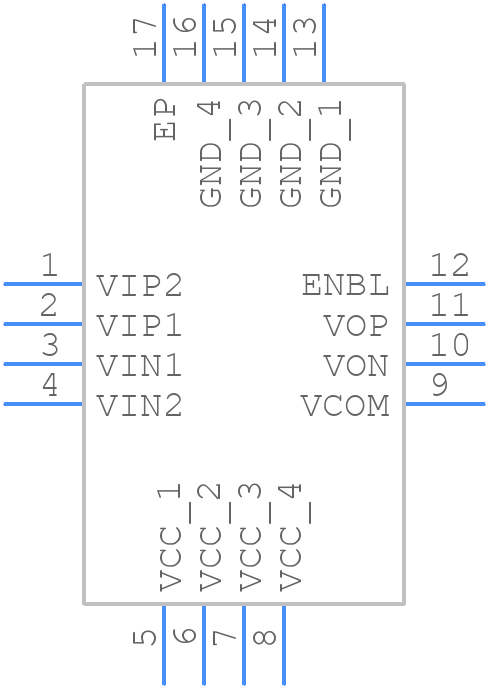

ADL5562ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5562ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] (CP-16-22)
click to zoom
3D Models
ADL5562ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] (CP-16-22)
click to zoom

ADL5562ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5562ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADL5562ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common-mode choke or a ferrite bead to filter the power supply.
  • The ADL5562ACPZ-R7 requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The input common-mode voltage should be set to 2.5V using a voltage divider or a voltage reference.
  • The maximum input signal amplitude is 2.5Vpp differential. Exceeding this limit may cause distortion and affect the amplifier's linearity.
  • Use a shielded enclosure, keep the input and output cables short and away from each other, and use twisted-pair cables to minimize radiation. Also, ensure the PCB layout is optimized for minimal radiation and use EMI filters or chokes if necessary.
  • The ADL5562ACPZ-R7 has a thermal derating of 3.3mW/°C above 25°C. Ensure proper heat sinking and thermal management to prevent overheating and maintain reliability.
