ADL5569BCPZ - Analog Devices

Description: Differential Amplifiers 5.2GHz DIFF AMP

Download ADL5569BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

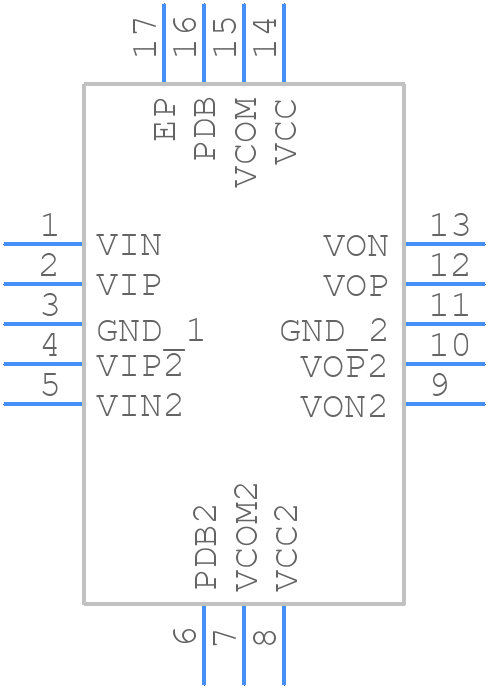

ADL5569BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5569BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADL5569BCPZ
click to zoom
3D Models
ADL5569BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - ADL5569BCPZ
click to zoom

ADL5569BCPZ Details

  • Manufacturer Part Number:

    ADL5569BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Common-mode Reject Ratio-Nom:

    47 dB

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    R-XQCC-N16

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.6 mm

  • Slew Rate-Nom:

    0.024 V/us

  • Supply Current-Max:

    86 mA

  • Supply Voltage Limit-Max:

    5.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Wideband:

    YES

  • Width:

    2.5 mm

ADL5569BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5569BCPZ involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
  • To optimize the performance of the ADL5569BCPZ in a high-frequency application, ensure that the input and output impedances are matched, use a low-loss PCB material, and minimize the length of the input and output traces. Additionally, consider using a shielded enclosure to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADL5569BCPZ is to apply the power supply voltage (VCC) before applying the input signal. This ensures that the internal bias circuitry is established before the input signal is applied, which helps to prevent damage to the device.
  • To troubleshoot common issues with the ADL5569BCPZ, start by verifying that the power supply voltage and input signal are within the recommended specifications. Check for proper PCB layout and decoupling, and ensure that the device is properly terminated. If oscillations or instability persist, consider using a spectrum analyzer to identify the frequency of the oscillation and adjust the circuit accordingly.
  • The recommended thermal management strategy for the ADL5569BCPZ involves using a heat sink or thermal pad to dissipate heat away from the device. Ensure that the device is mounted on a PCB with a solid ground plane, and consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
