ADL5590ACPZ-R7 - Analog Devices

Description: Modulator / Demodulator EMOD GSM ASIC FOR ERICSSON 1800-1990 MHZ

Download ADL5590ACPZ-R7 Model

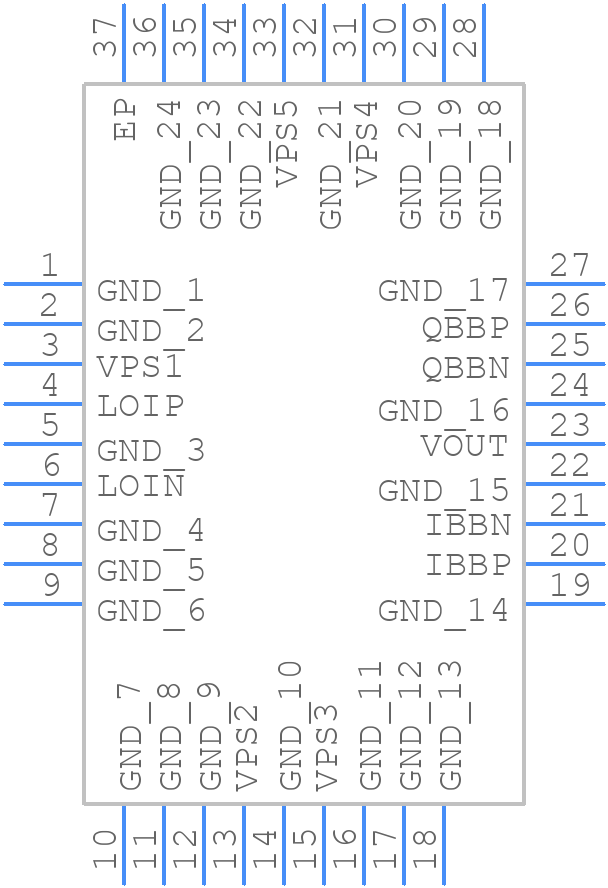

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5590ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-36-4)
click to zoom
3D Models
ADL5590ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-36-4)
click to zoom

ADL5590ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5590ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:39.475

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, MO-220VGGD-1, CP-36-1, LFCSP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    CP-36-4

  • Country Of Origin:

    Philippines

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Modulation Technique:

    QUADRAPHASE

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    869 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

ADL5590ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5590ACPZ-R7 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADL5590 evaluation board layout as a reference.
  • The ADL5590ACPZ-R7 requires a single 5V supply voltage. Ensure that the supply voltage is well-regulated and decoupled with a 10uF capacitor. The device also requires a bias voltage (VBIAS) of 2.5V, which can be generated using a voltage divider or a dedicated voltage reference. Refer to the datasheet for more information on biasing and decoupling.
  • The ADL5590ACPZ-R7 can handle input powers up to +20dBm (100mW) without damage. However, the maximum input power for optimal performance is +15dBm (30mW). Exceeding this limit may result in compression and distortion.
  • The ADL5590ACPZ-R7 requires calibration to ensure accurate power measurement. Calibration involves applying a known input power and adjusting the device's gain and offset to match the expected output. Refer to the datasheet and application notes for a detailed calibration procedure.
  • The typical settling time of the ADL5590ACPZ-R7 is around 10us to 15us, depending on the input power and frequency. This is the time it takes for the device to stabilize its output after a change in input power.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5590ACPZ-R7 Overview

Use the download button to access the ADL5590ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL55, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
