ADL5801ACPZ-R7 - Analog Devices

Description: RF Mixer Wide Band Active Mixer

Download ADL5801ACPZ-R7 Model

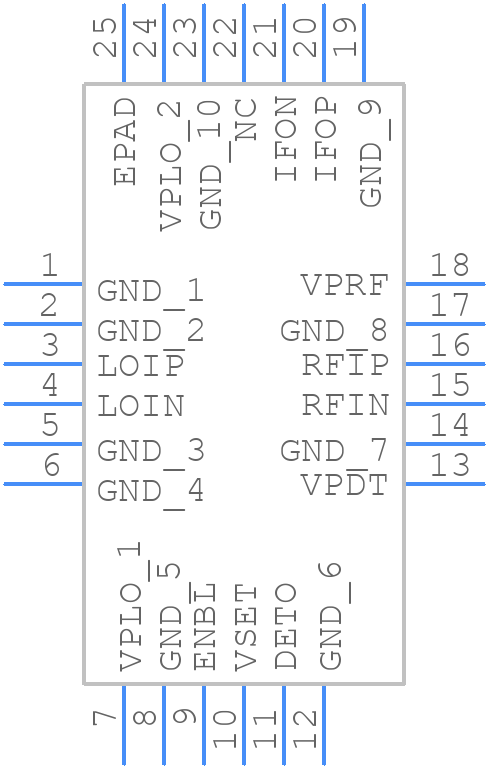

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5801ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-3 (LFCSP_VQ)_1
click to zoom
3D Models
ADL5801ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-24-3 (LFCSP_VQ)_1
click to zoom

ADL5801ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5801ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-8

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Supply Current-Max:

    200 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ADL5801ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The ADL5801ACPZ-R7 requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The maximum input signal amplitude is 2.5Vpp differential. Exceeding this may cause distortion and affect the device's performance.
  • Use a low-noise power supply, keep the input and output traces short, and use a ground plane to minimize noise coupling. Also, ensure the device is operated within its recommended operating conditions.
  • A 50Ω differential termination is recommended for optimal performance. This can be achieved using a 50Ω resistor in series with a 0.1uF capacitor.
