ADL5811ACPZ-R7 - Analog Devices

Description: AMP, IF, WB LO, 700-2800MHZ

Download ADL5811ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

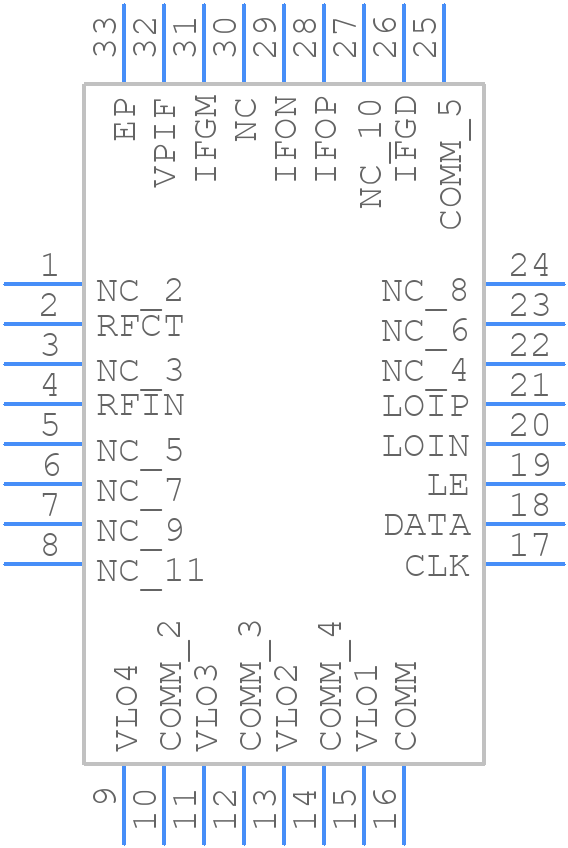

ADL5811ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5811ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-33N
click to zoom
3D Models
ADL5811ACPZ-R7 - Analog Devices - 3D model - Other - QFN50P500X500X80-33N
click to zoom

ADL5811ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5811ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:39.5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-20

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

ADL5811ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The ADL5811ACPZ-R7 requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The input common-mode voltage should be set to mid-supply (2.5V) for optimal performance.
  • The ADL5811ACPZ-R7 can handle input signal amplitudes up to 2.5Vpp differential. Exceeding this limit may result in distortion and reduced accuracy.
  • Use a shielded enclosure, keep the ADL5811ACPZ-R7 away from noise sources, and use a common mode choke or ferrite bead to filter the power supply. Ensure good PCB layout practices, such as separating analog and digital grounds.
  • The thermal resistance of the ADL5811ACPZ-R7 package is 26°C/W (junction-to-ambient) and 10°C/W (junction-to-case). Ensure good thermal management to prevent overheating.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADL5811ACPZ-R7 Overview

Use the download button to access the ADL5811ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL58, or try a keyword search, such as RF/Microwave Up/Down Converters
