ADL5902ACPZ-R2 - Analog Devices

Description: IC DETECTOR RF TRUPWR 16LFCSP

Download ADL5902ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

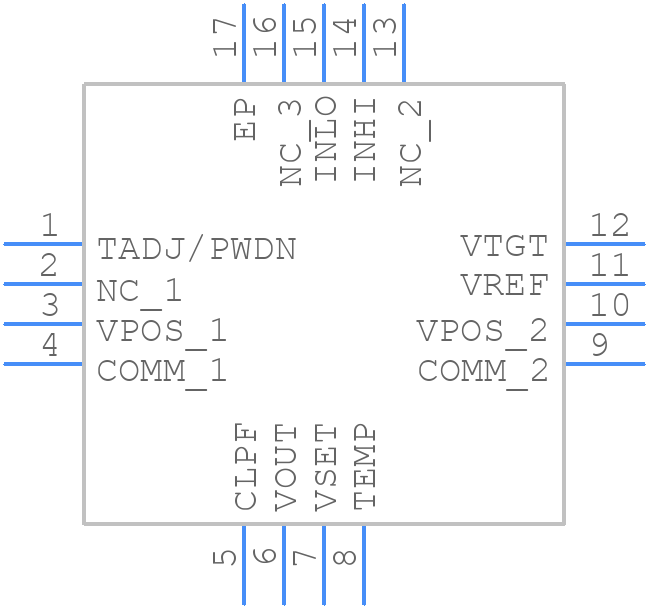

ADL5902ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5902ACPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-20)
click to zoom
3D Models
ADL5902ACPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-20)
click to zoom

ADL5902ACPZ-R2 Details

  • Manufacturer Part Number:

    ADL5902ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADL5902ACPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5902ACPZ-R2 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the edge of the board to minimize thermal resistance.
  • To ensure accurate power measurement with the ADL5902ACPZ-R2, it is essential to follow proper calibration procedures, use high-quality sense resistors, and minimize noise and interference in the system. Additionally, the device should be operated within its specified temperature range, and the input voltage should be within the recommended range.
  • The ADL5902ACPZ-R2 is rated for operation from -40°C to +125°C, but the device's accuracy and performance may degrade at extreme temperatures. It is recommended to operate the device within the -20°C to +85°C range for optimal performance.
  • The ADL5902ACPZ-R2 is designed for low-frequency power measurement applications up to 100 kHz. While it may be possible to use the device for higher-frequency applications, its accuracy and performance may degrade significantly. For high-frequency power measurement applications, it is recommended to use a device specifically designed for that purpose, such as the ADL5904ACPZ-R2.
  • The ADL5902ACPZ-R2 has a serial interface that can be easily interfaced with a microcontroller or FPGA. The device uses a 3-wire serial interface (SCLK, SDATA, and SYNC) that can be connected to a microcontroller or FPGA's SPI or I2C interface. The device's output data can be read using a simple serial protocol, and the device can be controlled using a set of control registers.
