ADL5903SCPZN-R7 - Analog Devices

Description: RF Detector RMS TruPwr Detectors

Download ADL5903SCPZN-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

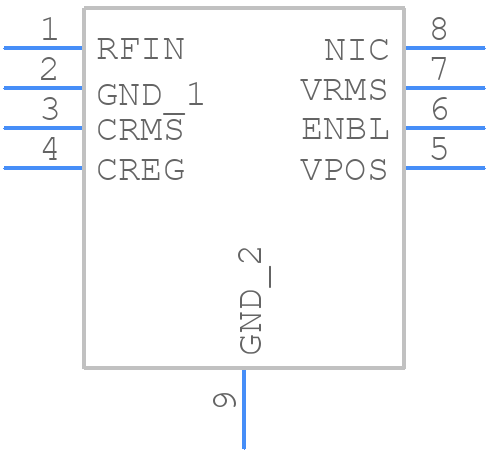

Symbol
ADL5903SCPZN-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5903SCPZN-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-10
click to zoom
3D Models
ADL5903SCPZN-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-10
click to zoom

ADL5903SCPZN-R7 Details

  • Manufacturer Part Number:

    ADL5903SCPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ADL5903SCPZN-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • Use a high-impedance input source, such as a voltage divider or an attenuator, to prevent loading the power source. Ensure the input signal is within the specified range (0.5V to 5.5V) and use a low-pass filter to remove noise.
  • The ADL5903SCPZN-R7 is rated for operation from -40°C to +125°C. However, the accuracy and linearity of the device may degrade at extreme temperatures.
  • Yes, the ADL5903SCPZN-R7 is suitable for high-reliability and safety-critical applications. It is fabricated using a robust process and has undergone rigorous testing and qualification. However, it is essential to follow proper design and validation procedures to ensure the device meets the specific application requirements.
  • Start by verifying the power supply voltage and input signal integrity. Check for proper PCB layout and decoupling. Use an oscilloscope to inspect the input and output waveforms. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices' support if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5903SCPZN-R7 Overview

Use the download button to access the ADL5903SCPZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL59, or try a keyword search, such as Other Signal Circuits

About Analog Devices
