ADL5906ACPZN-R2 - Analog Devices

Description: 10 MHz TO 10 GHz 67 dB TruPwr??? Detector

Download ADL5906ACPZN-R2 Model

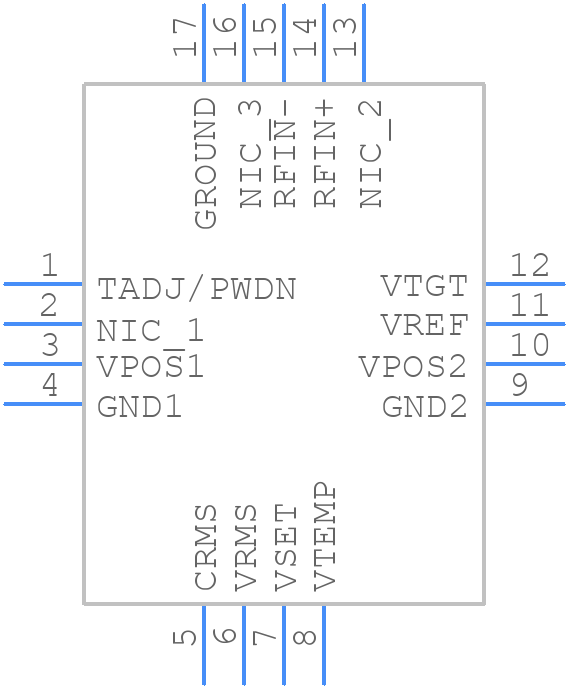

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5906ACPZN-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-2
click to zoom
3D Models
ADL5906ACPZN-R2 - Analog Devices  - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-2
click to zoom

ADL5906ACPZN-R2 Details

  • Manufacturer Part Number:

    ADL5906ACPZN-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220-WGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-23

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADL5906ACPZN-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5906ACPZN-R2 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • Calibration of the ADL5906ACPZN-R2 involves adjusting the gain and offset of the device to match the specific application requirements. This can be done by applying a known input signal and measuring the output, then adjusting the gain and offset registers accordingly. The datasheet provides a calibration procedure, and Analog Devices also offers a calibration tool to simplify the process.
  • The ADL5906ACPZN-R2 is rated for operation from -40°C to +125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's essential to consider the operating temperature range and potential thermal gradients when designing the system.
  • The ADL5906ACPZN-R2 is designed for power measurement up to 500 MHz. While it can be used for high-frequency applications, the device's performance may degrade at very high frequencies. It's essential to evaluate the device's frequency response and consider alternative solutions, such as the ADL5907, for higher frequency applications.
  • To ensure EMC, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, shielding, and filtering. Additionally, the ADL5906ACPZN-R2 has built-in EMI filters, and the datasheet provides guidelines for reducing electromagnetic interference. It's also recommended to follow industry standards and regulations, such as CISPR and FCC, for EMC compliance.
