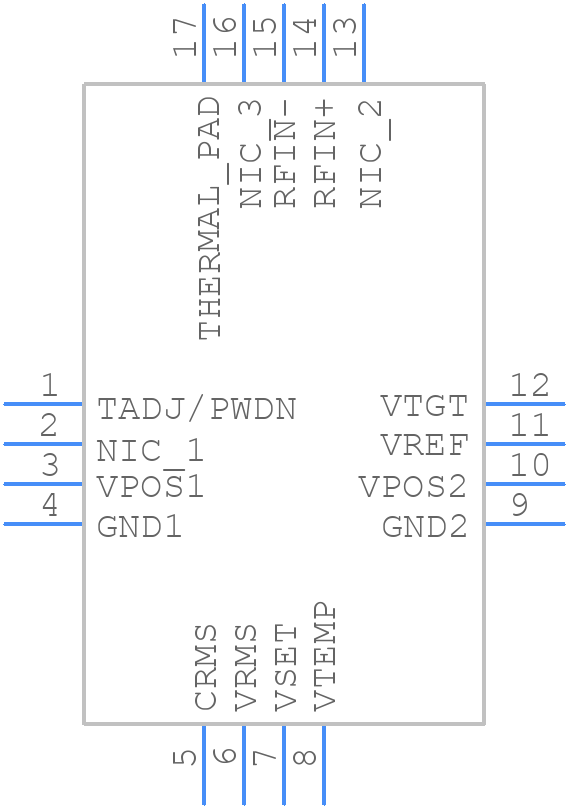

ADL5906SCPZN-R7 - Analog Devices

ADL5906SCPZN-R7 Details

• Manufacturer Part Number:

  ADL5906SCPZN-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  4 X 4 MM, ROHS COMPLIANT, MO-220-WGGC, LFCSP-16

• Pin Count:

  16

• Manufacturer Package Code:

  CP-16-23

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e4

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.16SQ,25

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
