- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADL6012SCPZN
- Part Number ADL6012SCPZN
- Manufacturer Analog Devices
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - (CP-10-12)_2021
- Released Date Jun 15, 2021
- Last Modified Date Oct 10, 2023 6:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADL6012SCPZN Details
-
Manufacturer Part Number:
ADL6012SCPZN
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LFCSP-10
-
Pin Count:
10
-
Manufacturer Package Code:
CP-10-12
-
ECCN Code:
5A991.B
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2020-05-19
-
Manufacturer:
Analog Devices Inc
ADL6012SCPZN Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADL6012SCPZN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
-
To ensure proper biasing, make sure to connect the VPOS and VNEG pins to a stable voltage source, and decouple them with capacitors to ground. The recommended bias voltage is between 4.5V and 5.5V. Also, ensure that the input common-mode voltage is within the specified range (0.5V to 4.5V) to maintain optimal performance.
-
The ADL6012SCPZN can handle input signal amplitudes up to 2.5V peak-to-peak (VPP) without distortion or clipping. However, it's recommended to keep the input signal amplitude below 2V VPP to ensure optimal performance and minimize distortion.
-
The output voltage of the ADL6012SCPZN is a differential signal, with the output pins (OUTP and OUTN) providing a voltage swing around the common-mode voltage (VCM). To interpret the output voltage, subtract the voltage on the OUTN pin from the voltage on the OUTP pin to get the differential output voltage. This voltage can then be converted to a single-ended signal using an op-amp or other circuitry.
-
The typical power consumption of the ADL6012SCPZN is around 12mA to 15mA, depending on the supply voltage and operating frequency. However, this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more detailed information on power consumption.
Trust Checks
Expert Contribution
System Verified
Community Approved
ADL6012SCPZN Overview

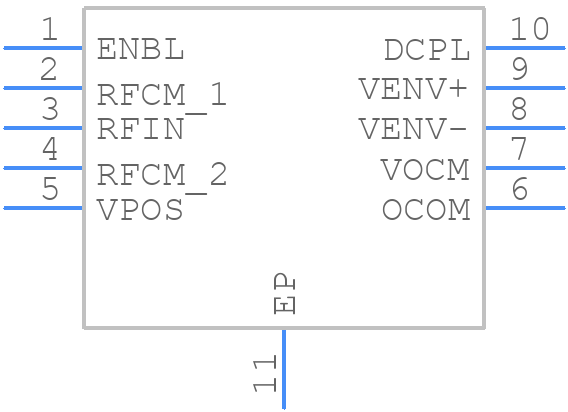

Use the download button to access the ADL6012SCPZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL60,
or try a keyword search, such as RF/Microwave Detectors
