ADL7078ACPZN - Analog Devices

Description: ► High RF input power survivability: 32 dBm ► Integrated AC coupling capacitors and bias inductor ► Single positive supply: 5 V with IDQ = 175 mA ► RBIAS drain current adjustment pin ► Gain: 13 dB typical from 2 GHz to 18 GHz ► OIP3: 28 dBm typical from 2 GHz to 18 GHz ► OIP2: 48 dBm typical from 2 GHz to 18 GHz

Download ADL7078ACPZN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

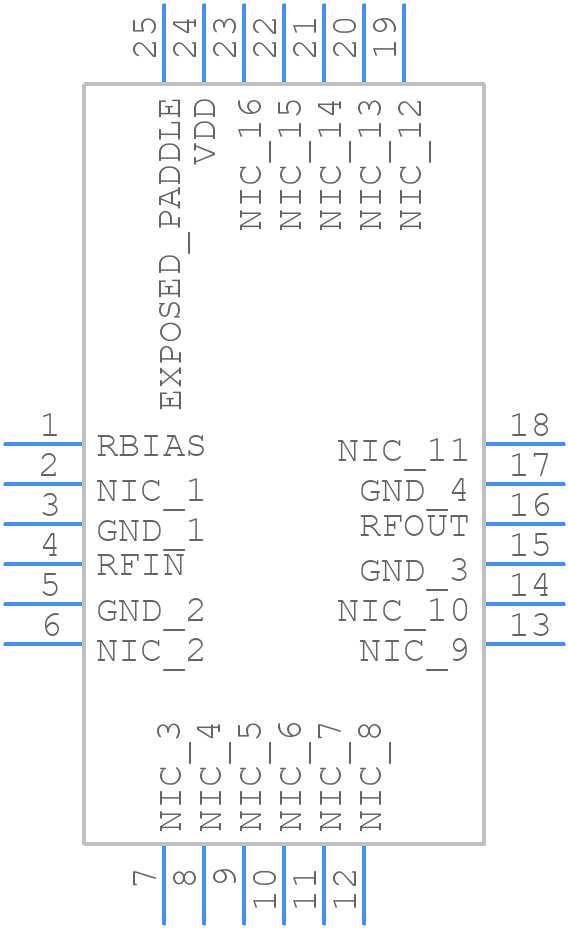

ADL7078ACPZN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL7078ACPZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-15
click to zoom
3D Models
ADL7078ACPZN - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-15
click to zoom

ADL7078ACPZN Details

  • Manufacturer Part Number:

    ADL7078ACPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11 dB

  • Input Power-Max (CW):

    32 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.31

ADL7078ACPZN Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL7078ACPZN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, make sure to connect the VPOS pin to a stable voltage source between 2.7V and 5.5V, and the VNEG pin to a stable voltage source between -2.7V and -5.5V. Also, ensure that the input common-mode voltage is within the recommended range of 0.5V to 4.5V.
  • The maximum input signal amplitude that the ADL7078ACPZN can handle is ±10V, but it's recommended to keep the input signal amplitude within ±5V to ensure optimal performance and prevent distortion.
  • To reduce noise and EMI, use a low-pass filter at the input, keep the input and output traces short and shielded, and use a ground plane to reduce radiation. Also, consider using a shielded enclosure and keeping the device away from high-frequency sources.
  • The recommended operating temperature range for the ADL7078ACPZN is -40°C to 125°C, but it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
