ADL8107ACPZN - Analog Devices

Description: GaAs, pHEMT, MMIC, Low Noise Amplifier, 6 GHz to 18 GHz

Download ADL8107ACPZN Model

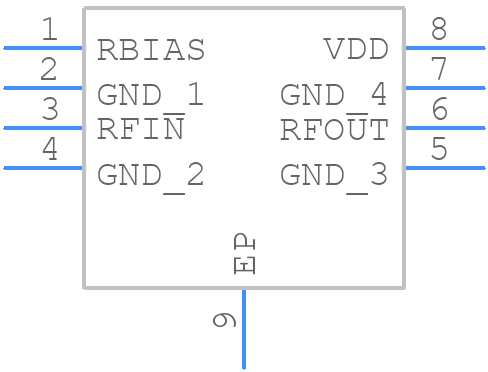

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL8107ACPZN - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-30
click to zoom
3D Models
ADL8107ACPZN - Analog Devices  - 3D model - Small Outline No-lead - CP-8-30
click to zoom

ADL8107ACPZN Details

  • Manufacturer Part Number:

    ADL8107ACPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    22 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.54

ADL8107ACPZN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure the input voltage is within the recommended range (2.7V to 5.5V) and the output voltage is set to the desired level using the FB pin. Also, ensure the EN pin is properly biased to enable or disable the device.
  • The maximum input voltage is 5.5V, exceeding this may cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to prevent overvoltage conditions.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines to minimize EMI.
  • The thermal derating of the ADL8107ACPZN is 1.5°C/W. As the device temperature increases, the output current and voltage may decrease. Ensure proper heat sinking and thermal management to maintain optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL8107ACPZN Overview

Use the download button to access the ADL8107ACPZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL81, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
