ADL8141ACPZN - Analog Devices

Description: GaAs, pHEMT, MMIC, Low Noise Amplifier, 14 GHz to 24 GHz

Download ADL8141ACPZN Model

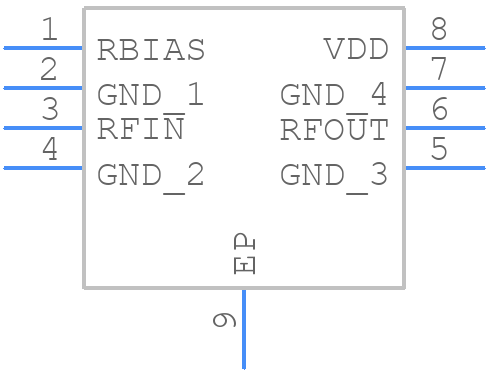

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL8141ACPZN - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADL8141ACPZN
click to zoom
3D Models
ADL8141ACPZN - Analog Devices  - 3D model - Small Outline No-lead - ADL8141ACPZN
click to zoom

ADL8141ACPZN Details

  • Manufacturer Part Number:

    ADL8141ACPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    0

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ADL8141ACPZN Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL8141ACPZN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and biasing circuitry outlined in the datasheet. The device requires a single 5V supply, and the bias voltage (VBIAS) should be set to 2.5V. Additionally, ensure that the input and output impedance matching is correct, and the device is operated within its recommended operating conditions.
  • The ADL8141ACPZN is designed to handle a maximum input power of +25 dBm. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the recommended range to maintain the device's reliability and performance.
  • To troubleshoot common issues with the ADL8141ACPZN, start by verifying the PCB layout and ensuring that it meets the recommended guidelines. Check the power supply and biasing circuitry to ensure they are correct. Also, verify that the input and output impedance matching is correct. If issues persist, consult the application notes and datasheet for troubleshooting guides or contact Analog Devices' technical support.
  • The ADL8141ACPZN is rated for operation from -40°C to +125°C. However, the device's performance may degrade at higher temperatures. It's essential to ensure that the device is operated within its recommended operating conditions, and thermal management is implemented to prevent overheating. Consult the datasheet and application notes for more information on thermal considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL8141ACPZN Overview

Use the download button to access the ADL8141ACPZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL81, or try a keyword search, such as RF/Microwave Amplifiers
