ADL8143ACPZN-R7 - Analog Devices

Description: ► Single positive supply (self biased) typical: 1.5 V and 35 mA ► RBIAS drain current adjustment pin ► Gain: 28.5 dB from 8 GHz to 10 GHz ► Noise figure: 1 dB from 8 GHz to 10 GHz ► Extended operating temperature range: −55°C to +125°C ► Internally matched and AC-coupled ► RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP

Download ADL8143ACPZN-R7 Model

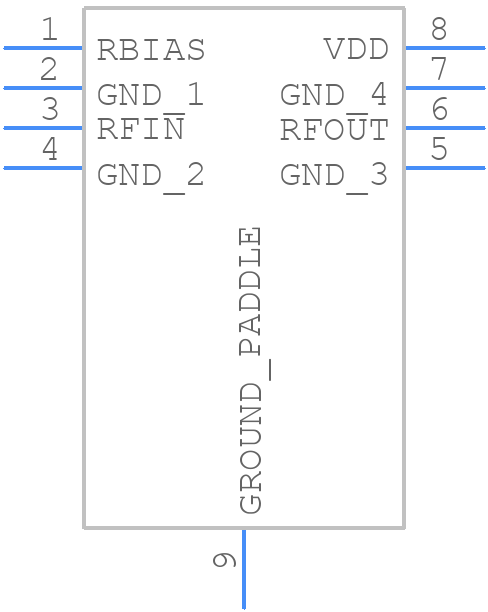

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL8143ACPZN-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP] 2 mm × 2 mm Body and 0.85 mm Package Height (CP-8-30)
click to zoom
3D Models
ADL8143ACPZN-R7 - Analog Devices  - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP] 2 mm × 2 mm Body and 0.85 mm Package Height (CP-8-30)
click to zoom

ADL8143ACPZN-R7 Details

  • Manufacturer Part Number:

    ADL8143ACPZN-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

ADL8143ACPZN-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL8143ACPZN-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADL8143 evaluation board layout as a reference.
  • The ADL8143ACPZN-R7 requires a single 5V supply voltage. Ensure that the supply voltage is well-regulated and decoupled with a 10uF capacitor. The device also requires a bias resistor (RBIAS) connected between the RBIAS pin and the output pin to set the output current. The recommended RBIAS value is 1kΩ.
  • The ADL8143ACPZN-R7 can deliver up to 200mA of output current. However, the maximum output current is dependent on the input voltage, output voltage, and temperature. Refer to the datasheet for the output current vs. input voltage and temperature graphs.
  • The ADL8143ACPZN-R7 has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, it's still recommended to add external protection components such as a TVS diode for OVP and a current-limiting resistor for OCP. Additionally, ensure that the input voltage is within the recommended operating range.
  • The typical startup time of the ADL8143ACPZN-R7 is around 100μs. However, this time can vary depending on the input voltage, output voltage, and load conditions. Refer to the datasheet for the startup time vs. input voltage graph.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL8143ACPZN-R7 Overview

Use the download button to access the ADL8143ACPZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL81, or try a keyword search, such as RF/Microwave Amplifiers
