ADL9005ACPZN-R7 - Analog Devices

Description: RF Amplifier DC to 28 GHz distributed LNA

Download ADL9005ACPZN-R7 Model

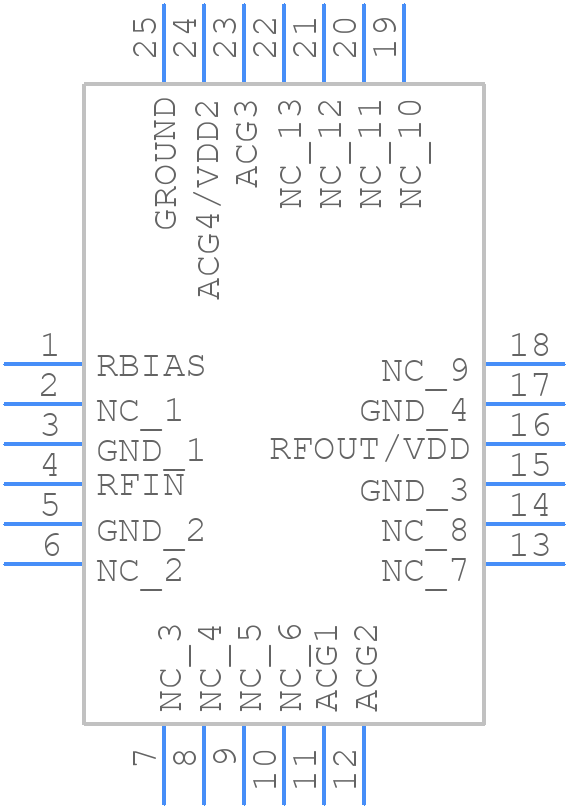

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL9005ACPZN-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-15
click to zoom
3D Models
ADL9005ACPZN-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-24-15
click to zoom

ADL9005ACPZN-R7 Details

  • Manufacturer Part Number:

    ADL9005ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17 dB

  • Input Power-Max (CW):

    22 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    26500 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.49

ADL9005ACPZN-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL9005ACPZN-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, make sure to connect the VPOS pin to a stable voltage source between 2.7V and 5.5V, and the VNEG pin to a stable voltage source between -2.7V and -5.5V. Also, ensure that the input common-mode voltage is within the recommended range of 0.5V to 4.5V.
  • The maximum power dissipation of the ADL9005ACPZN-R7 is 1.4W. To ensure reliable operation, the device should be operated at a junction temperature below 125°C. A thermal pad on the bottom of the package can be used to improve heat dissipation.
  • To protect the ADL9005ACPZN-R7 from ESD, handle the device by the body or pins, avoid touching the pins, and use an ESD wrist strap or mat. Also, ensure that the PCB is designed with ESD protection in mind, such as using ESD protection diodes and resistors.
  • The recommended input impedance for the ADL9005ACPZN-R7 is 1kΩ to 10kΩ. A higher input impedance can lead to reduced bandwidth and increased noise, while a lower input impedance can lead to increased power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL9005ACPZN-R7 Overview

Use the download button to access the ADL9005ACPZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL90, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
