ADL9005ACPZN - Analog Devices

Description: DC TO 28 GHZ DISTRIBUTED LNA

Download ADL9005ACPZN Model

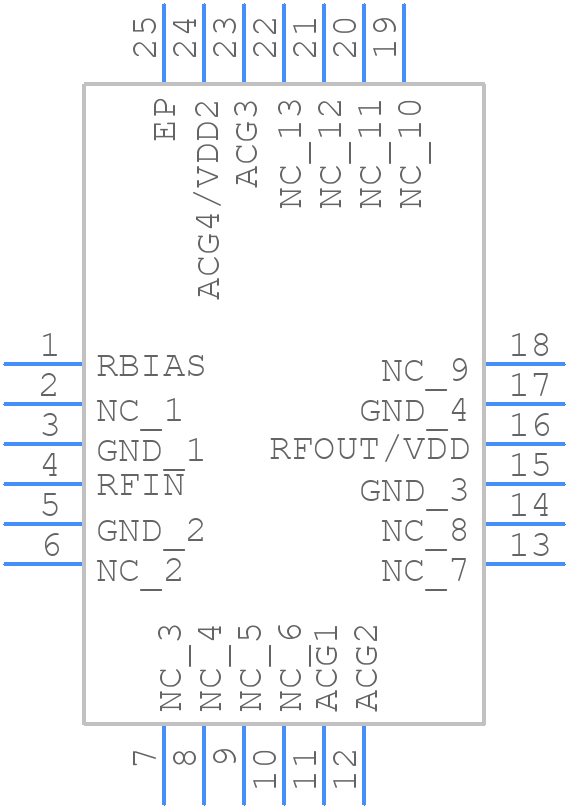

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL9005ACPZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-15
click to zoom
3D Models
ADL9005ACPZN - Analog Devices  - 3D model - Quad Flat No-Lead - CP-24-15
click to zoom

ADL9005ACPZN Details

  • Manufacturer Part Number:

    ADL9005ACPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17 dB

  • Input Power-Max (CW):

    22 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    26500 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.49

ADL9005ACPZN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other. Use a common mode filter or a ferrite bead to filter out high-frequency noise on the power lines.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the device's power pins. Add a 1uF capacitor in parallel to filter out high-frequency noise. Ensure the power supply is clean and regulated, with a minimum of 1.8V and a maximum of 3.6V.
  • The recommended clock frequency is between 10MHz to 40MHz. However, the device can operate up to 50MHz, but with reduced performance. Ensure the clock signal is clean and has a low jitter to maintain optimal performance.
  • Use the power-down mode (PD pin) to reduce power consumption when the device is not in use. Adjust the clock frequency and voltage regulator settings to minimize power consumption. Consider using a dynamic voltage and frequency scaling (DVFS) technique to optimize power consumption based on system requirements.
  • The ADL9005ACPZN supports SPI, I2C, and I2S interfaces. Choose the interface protocol based on system requirements and compatibility with other components. Ensure proper signal termination and impedance matching to prevent signal reflections and errors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL9005ACPZN Overview

Use the download button to access the ADL9005ACPZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL90, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
