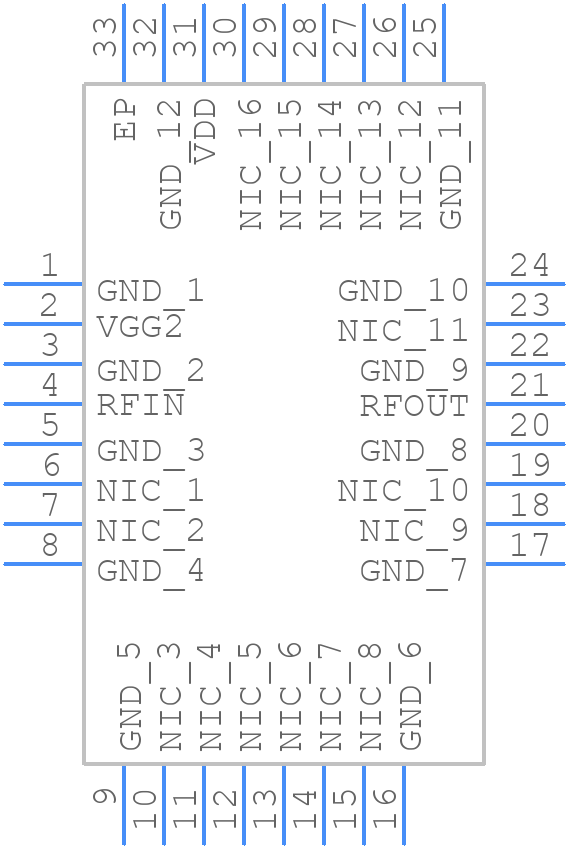

ADL9006ACGZN - Analog Devices

ADL9006ACGZN Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADL9006ACGZN to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for power decoupling and place it close to the device.
• How do I ensure the ADL9006ACGZN is properly powered and what are the power sequencing requirements?
  The ADL9006ACGZN requires a 3.3V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device in the following order: AVDD, DVDD, and then the input signals.
• What is the maximum input signal amplitude that the ADL9006ACGZN can handle without saturating?
  The maximum input signal amplitude that the ADL9006ACGZN can handle without saturating is 2.5Vpp differential. Exceeding this amplitude may cause the device to saturate and result in inaccurate measurements.
• How do I calibrate the ADL9006ACGZN to ensure accurate measurements?
  The ADL9006ACGZN does not require calibration. However, it's recommended to perform a system-level calibration to account for any system-level errors. This can be done by applying a known input signal and adjusting the system gain and offset to achieve accurate measurements.
• What is the typical current consumption of the ADL9006ACGZN and how does it vary with different operating modes?
  The typical current consumption of the ADL9006ACGZN is 35mA at 3.3V supply voltage. The current consumption varies with different operating modes, with the lowest power consumption in shutdown mode (less than 1mA) and the highest in normal operating mode.
