Description:On-chip and remote temperature sensing; No calibration necessary; 1°C accuracy for on-chip sensor; 3°C accuracy for remote sensor; Programmable overtemperature / undertemperature limits; Programmable conversion rate; 2-wire SMBus serial interface; Supports system management bus (SMBus) alert; 200 µA max operating current; 1 µA standby current
A good PCB layout for the ADM1021AARQZ-R should include a solid ground plane, a separate power plane for the input voltage, and a thermal relief pattern around the device to facilitate heat dissipation. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to optimize the design.
To ensure accurate temperature readings, it's crucial to calibrate the device, use a high-precision voltage reference, and minimize noise in the system. Additionally, the device should be mounted close to the component being monitored, and the thermal interface material should be of high quality to minimize thermal resistance.
The maximum cable length for the remote temperature sensing feature of the ADM1021AARQZ-R depends on the cable type, noise environment, and system requirements. As a general guideline, the cable length should be limited to 10 meters or less to ensure reliable operation. However, it's recommended to consult with an application engineer or perform tests to determine the maximum cable length for a specific application.
The ADM1021AARQZ-R is a commercial-grade device, and its use in high-reliability or safety-critical applications should be carefully evaluated. While the device is designed to meet certain quality and reliability standards, it may not meet the specific requirements of high-reliability or safety-critical applications. It's recommended to consult with an application engineer or a reliability expert to determine the suitability of the device for such applications.
The thermal shutdown feature of the ADM1021AARQZ-R is designed to protect the device from overheating. When the device exceeds its maximum junction temperature, it will shut down to prevent damage. In system design, it's essential to ensure that the device is properly cooled, and the thermal shutdown feature is properly handled through system-level design and fault detection mechanisms.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADM1021AARQZ-R Overview

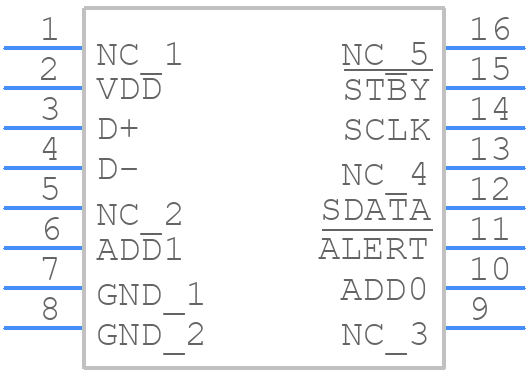

Use the download button to access the ADM1021AARQZ-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM10,
or try a keyword search, such as Other Converters
