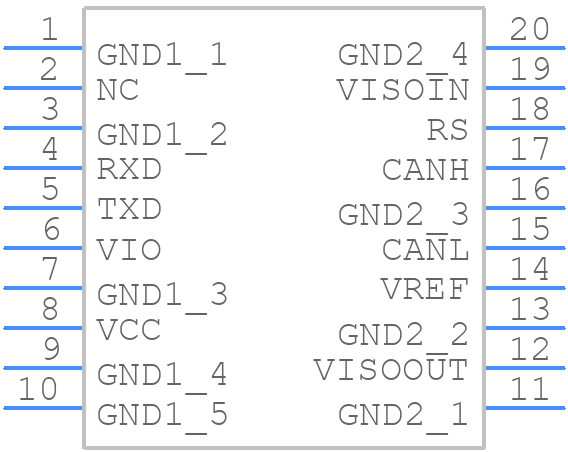

ADM3053BRWZ-REEL7 - Analog Devices

ADM3053BRWZ-REEL7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADM3053BRWZ-REEL7?
  A good PCB layout for the ADM3053BRWZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
• How do I ensure the ADM3053BRWZ-REEL7 is properly powered and decoupled?
  To ensure proper powering and decoupling of the ADM3053BRWZ-REEL7, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 0.1 μF and 10 μF) close to the device's power pins.
• What is the maximum data rate that can be achieved with the ADM3053BRWZ-REEL7?
  The ADM3053BRWZ-REEL7 can achieve data rates of up to 100 Mbps, but the actual data rate may be limited by the specific application, PCB layout, and noise environment.
• How do I handle ESD protection when working with the ADM3053BRWZ-REEL7?
  To prevent ESD damage, handle the ADM3053BRWZ-REEL7 by its body or pins, use an anti-static wrist strap or mat, and ensure the PCB is designed with ESD protection in mind, such as using TVS diodes or ESD protection arrays.
• What are the thermal considerations for the ADM3053BRWZ-REEL7?
  The ADM3053BRWZ-REEL7 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid overheating the device, especially in high-power or high-temperature applications.
