ADM3053BRWZ - Analog Devices

Description: 2.5 kV rms signal and power isolated CAN transceiver isoPower integrated isolated dc-to-dc converter 5 V operation on VCC 5 V or 3.3 V operation on VIO Complies with ISO 11898 standard High speed data rates of up to 1 Mbps Unpowered nodes do not disturb the bus Connect 110 or more nodes on the bus Slope control for reduced EMI Thermal shutdown protection High common-mode transient immunity: >25 kV/μs Safety and regulatory approvals UL recognition 2500 V rms for 1 minute per UL 1577 CSA Compone

Download ADM3053BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

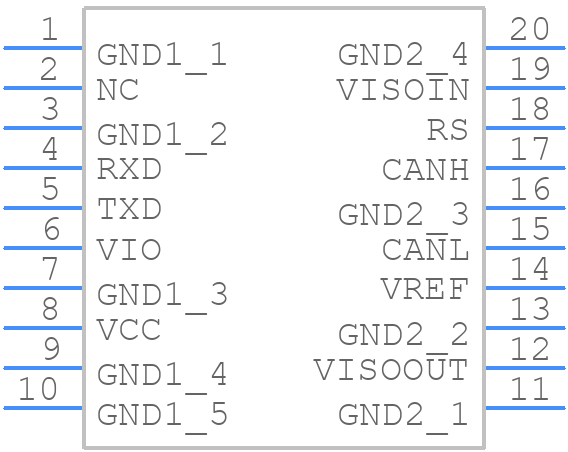

ADM3053BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3053BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-20
click to zoom
3D Models
ADM3053BRWZ - Analog Devices - 3D model - Small Outline Packages - RW-20
click to zoom

ADM3053BRWZ Details

  • Manufacturer Part Number:

    ADM3053BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS013AC, SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.41

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    260 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM3053BRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3053BRWZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the isolation boundary. Additionally, using a shielded enclosure and minimizing the length of the digital lines can help reduce EMI.
  • To ensure reliable operation of the ADM3053BRWZ in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the device within its specified operating temperature range.
  • When selecting the correct isolation voltage for the ADM3053BRWZ, consider the maximum working voltage, the type of isolation required (e.g., basic, supplementary, or reinforced), and the safety certifications required for the application (e.g., UL, IEC, or VDE).
  • To troubleshoot common issues with the ADM3053BRWZ, start by checking the power supply, clock frequency, and data transmission protocol. Verify that the device is properly configured and that the isolation boundaries are not compromised. Use oscilloscopes or logic analyzers to debug the digital signals and ensure that the device is operating within its specified parameters.
  • When using the ADM3053BRWZ in a safety-critical application, ensure that the device is used within its specified operating conditions and that the system is designed to meet the relevant safety standards (e.g., IEC 61508 or ISO 26262). Perform a thorough risk assessment, and consider implementing redundant or diverse architectures to mitigate potential failures.
