ADM3055EBRIZ - Analog Devices

Description: CAN Interface IC 5kV isoPower Isoltd CAN-FD Transceiver

Download ADM3055EBRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

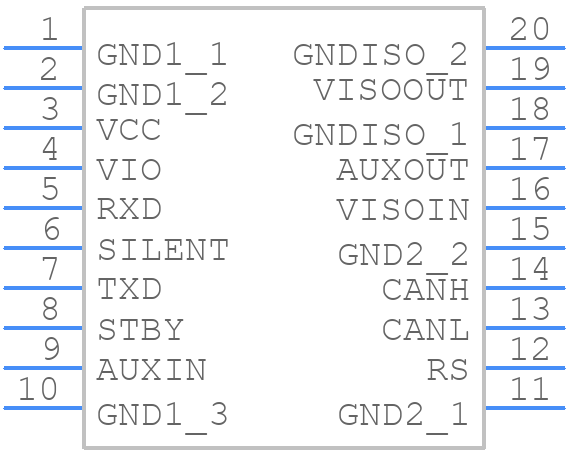

ADM3055EBRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3055EBRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-20-A (SOIC_IC)-1
click to zoom
3D Models
ADM3055EBRIZ - Analog Devices - 3D model - Small Outline Packages - RI-20-A (SOIC_IC)-1
click to zoom

ADM3055EBRIZ Details

  • Manufacturer Part Number:

    ADM3055EBRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RI-20-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    260 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM3055EBRIZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3055EBRIZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the isolation barrier. Additionally, using a shielded cable for the USB connection and keeping the cable length as short as possible can help minimize EMI.
  • To ensure reliable operation of the ADM3055EBRIZ in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, derating the device's operating temperature range may be necessary in extreme temperature environments.
  • The ADM3055EBRIZ is designed to operate with a standard USB voltage of 5V. Using the device in a system with a non-standard USB voltage may affect its performance and reliability. It is recommended to use a voltage regulator to ensure a stable 5V supply to the device. Additionally, the device's power consumption and thermal performance should be carefully evaluated in systems with non-standard USB voltages.
  • To troubleshoot issues with the ADM3055EBRIZ, it is recommended to follow a systematic approach, starting with a review of the device's configuration and setup. Check the device's power supply, clocking, and reset signals, and verify that the device is properly configured and initialized. Use debugging tools, such as logic analyzers or oscilloscopes, to capture and analyze the device's signals and identify the root cause of the issue.
  • The ADM3055EBRIZ is designed to operate in environments with some level of electromagnetic interference (EMI). However, in systems with high levels of EMI, the device's performance and reliability may be affected. It is recommended to use EMI shielding, filtering, and grounding techniques to minimize the impact of EMI on the device's operation.
