ADM3056EBRIZ - Analog Devices

Description: CAN Interface IC 5.7kV Isolated CAN-FD Transceiver

Download ADM3056EBRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

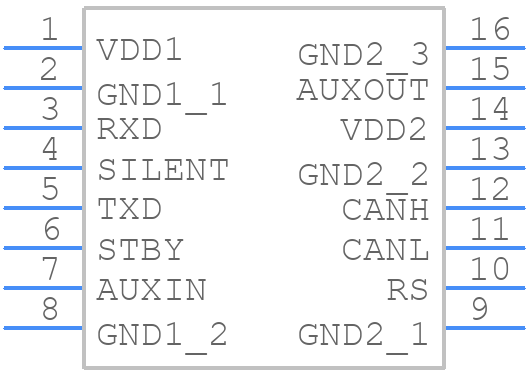

Symbol
ADM3056EBRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3056EBRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package with Increased Creepage [SOIC_IC]
click to zoom
3D Models
ADM3056EBRIZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package with Increased Creepage [SOIC_IC]
click to zoom

ADM3056EBRIZ Details

  • Manufacturer Part Number:

    ADM3056EBRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADM3056EBRIZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, direct traces for the high-frequency signals and avoid vias under the device.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power decoupling, placed as close to the device as possible. Ensure the power supply is clean and regulated, with minimal noise and ripple.
  • A high-quality, low-jitter clock source is recommended, such as a crystal oscillator or a high-stability clock generator. Avoid using the internal clock generator if possible, as it may introduce additional noise.
  • Use a low-pass filter or a band-pass filter to remove high-frequency noise and aliasing. Ensure the input impedance is matched to the source impedance, and use a buffer amplifier if necessary. Keep the analog input traces short and away from digital signals.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device, and avoid blocking the airflow with nearby components. Consider using a thermal interface material (TIM) to improve heat transfer.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3056EBRIZ Overview

Use the download button to access the ADM3056EBRIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
