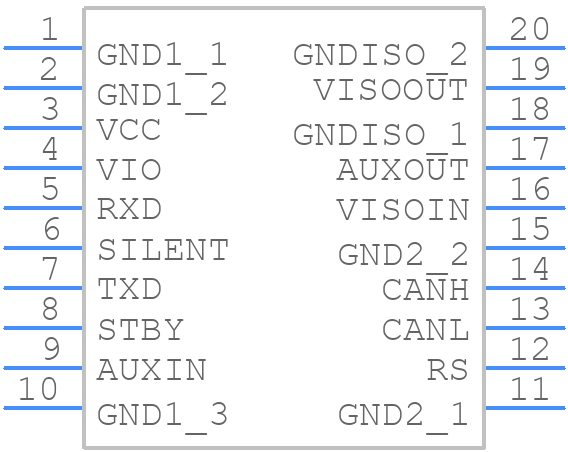

ADM3057ETRWZ-EP-RL - Analog Devices

ADM3057ETRWZ-EP-RL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADM3057ETRWZ-EP-RL?
  A good PCB layout for the ADM3057ETRWZ-EP-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
• How do I ensure the ADM3057ETRWZ-EP-RL is properly powered and decoupled?
  To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins.
• What is the maximum data rate that can be achieved with the ADM3057ETRWZ-EP-RL?
  The ADM3057ETRWZ-EP-RL can support data rates up to 100 Mbps, but the actual achievable data rate depends on the specific application, PCB layout, and noise environment.
• How do I handle ESD protection for the ADM3057ETRWZ-EP-RL?
  To handle ESD protection, use ESD protection devices (e.g., TVS diodes) on the input lines, and ensure that the PCB layout and handling procedures minimize the risk of ESD damage.
• What are the thermal considerations for the ADM3057ETRWZ-EP-RL?
  The ADM3057ETRWZ-EP-RL has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid overheating the device to prevent thermal shutdown or damage.
