ADM3057ETRWZ-EP - Analog Devices

Description: 5 kVrms/3 kV rms signal and power isolated CAN transceivers isoPower integrated isolated dc-to-dc converter VIO pin for 1.7 V to 5.5 V logic levels ISO 11898-2:2016 compliant (CAN FD) Data rates up to 12 Mbps for CAN FD Low maximum loop propagation delay: 150 ns Extended common-mode range: ±25 V Bus fault protection: ±40 V on CANH and CANL pins Low power standby support remote wake request Extra isolated signal for control (such as termination switches) Passes EN 55022 Class B by 6 dB Slope contr

Download ADM3057ETRWZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

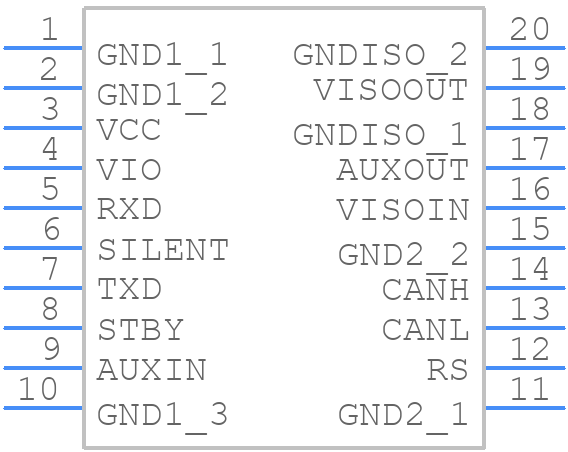

ADM3057ETRWZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3057ETRWZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-20)
click to zoom
3D Models
ADM3057ETRWZ-EP - Analog Devices - 3D model - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-20)
click to zoom

ADM3057ETRWZ-EP Details

  • Manufacturer Part Number:

    ADM3057ETRWZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-02-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADM3057ETRWZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3057ETRWZ-EP involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADM3057ETRWZ-EP, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a ferrite bead or a power inductor to filter out high-frequency noise.
  • The ADM3057ETRWZ-EP can support data rates up to 100 Mbps, but the actual achievable data rate depends on the specific application, PCB layout, and noise environment. In general, it's recommended to limit the data rate to 50 Mbps or less to ensure reliable operation.
  • To ensure ESD protection for the ADM3057ETRWZ-EP, use ESD protection devices (e.g., TVS diodes or ESD arrays) on the I/O lines, and consider adding a series resistor to limit the current in case of an ESD event. Additionally, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
  • The ADM3057ETRWZ-EP has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device's junction temperature below 125°C. Use thermal analysis and simulation tools to estimate the device's temperature, and consider using heat sinks or thermal interfaces to reduce the junction temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3057ETRWZ-EP Overview

Use the download button to access the ADM3057ETRWZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
