ADM3058EBRIZ-RL - Analog Devices

Description: 5.7 kV rms, Signal Isolated, High Working Voltage, CAN FD Transceiver with ?15kV IEC ESD

Download ADM3058EBRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

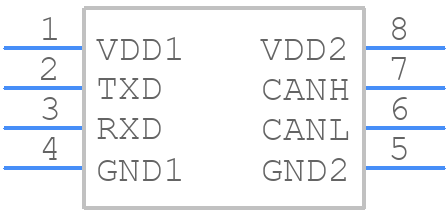

Symbol
ADM3058EBRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3058EBRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-8-1
click to zoom
3D Models
ADM3058EBRIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-8-1
click to zoom

ADM3058EBRIZ-RL Details

  • Manufacturer Part Number:

    ADM3058EBRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RI-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    12000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ADM3058EBRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3058EBRIZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
  • To ensure reliable communication, use a reliable serial communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a pull-up resistor on the SCL line and a pull-down resistor on the SDA line.
  • The maximum cable length supported by the ADM3058EBRIZ-RL depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters for RS-485 and up to 10 meters for RS-232.
  • To troubleshoot issues with the ADM3058EBRIZ-RL, start by checking the power supply voltage and ensuring that it is within the specified range. Then, check the serial communication protocol and ensure that it is correctly configured. Use a logic analyzer or oscilloscope to debug the serial communication signals.
  • Yes, the ADM3058EBRIZ-RL can be used in a hot-swappable application. However, ensure that the device is properly powered down before removal and that the power supply voltage is within the specified range during hot-swapping.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3058EBRIZ-RL Overview

Use the download button to access the ADM3058EBRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
