ADM3260ARSZ - Analog Devices

Description: Analog Devices ADM3260ARSZ PCB SMT 4-channel Digital Isolator, 2500 Vrms, 20-Pin SSOP

Download ADM3260ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

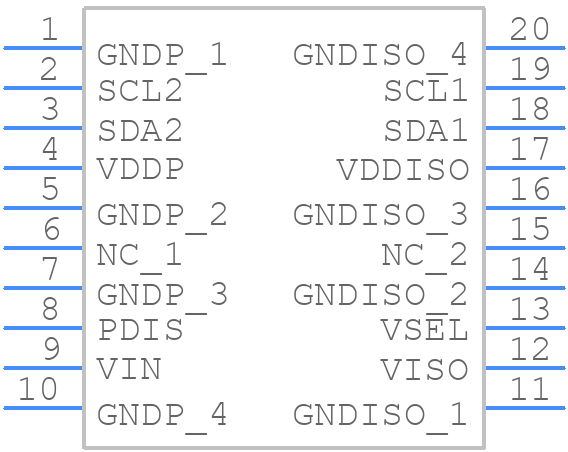

ADM3260ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3260ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-20
click to zoom
3D Models
ADM3260ARSZ - Analog Devices - 3D model - Small Outline Packages - SSOP-20
click to zoom

ADM3260ARSZ Details

  • Manufacturer Part Number:

    ADM3260ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADM3260ARSZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3260ARSZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers accordingly. It's also important to use a high-precision voltage reference and to minimize noise and interference during calibration.
  • The maximum allowed input voltage for the ADM3260ARSZ is ±5.5V. If the input voltage exceeds this limit, it may cause damage to the device or affect its accuracy. It's recommended to use input protection circuits, such as voltage limiters or clamping diodes, to prevent overvoltage conditions.
  • The ADM3260ARSZ can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. Key considerations for communication include ensuring proper clock synchronization, using the correct communication protocol, and handling data formatting and transmission correctly.
  • The ADM3260ARSZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and follow proper thermal design guidelines. Additionally, consider using thermal simulation tools to model and optimize the thermal performance of the system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3260ARSZ Overview

Use the download button to access the ADM3260ARSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM32, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
