ADM660ANZ - Analog Devices

Description: DC-DC converter,ADM660AN -Vin/2Vin 100mA ADM660ANZ, Charge Pump Inverting, Step Up, -7 → -1.5 V, 5 → 14 V, 8-Pin, PDIP

Download ADM660ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

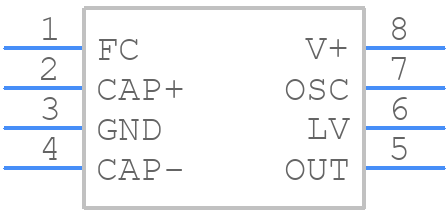

Symbol
ADM660ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM660ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-(N-8)
click to zoom

ADM660ANZ Details

  • Manufacturer Part Number:

    ADM660ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    7 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    14 V

  • Output Voltage-Min:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    4.5 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    120 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADM660ANZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM660ANZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known voltage to the input pins and adjusting the internal calibration registers accordingly. It's also important to ensure the device is operated within the recommended temperature range.
  • The maximum allowed voltage on the input pins of the ADM660ANZ is ±6.5V, exceeding which can cause damage to the device. It's essential to ensure that the input voltage is within the recommended range to prevent damage and ensure accurate measurements.
  • The ADM660ANZ can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The device's digital output can be connected to the microcontroller's or FPGA's digital input pins, and the communication protocol can be implemented using the device's datasheet and the microcontroller's or FPGA's documentation.
  • The power consumption of the ADM660ANZ is typically around 10mA, but it can be minimized by using the device's power-down mode, reducing the sampling rate, and optimizing the system's power management. Additionally, using a low-power microcontroller or FPGA can also help reduce overall system power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM660ANZ Overview

Use the download button to access the ADM660ANZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM66, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
