ADM660ARZ-REEL7 - Analog Devices

Description: Analog Devices ADM660ARZ-REEL7, 1-Channel, Inverting DC-DC Converter, Adjustable 8-Pin, SOIC

Download ADM660ARZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

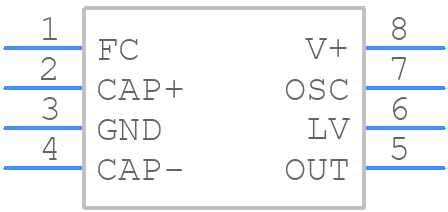

Symbol
ADM660ARZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM660ARZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - [SOIC_N]-
click to zoom
3D Models
ADM660ARZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-
click to zoom

ADM660ARZ-REEL7 Details

  • Manufacturer Part Number:

    ADM660ARZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    7 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    14 V

  • Output Voltage-Min:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    120 kHz

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ADM660ARZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM660ARZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADM660ARZ-REEL7 requires a clean and stable power supply. Use a low-ESR capacitor (e.g., 10uF) for power supply decoupling, and consider adding a ferrite bead or a pi-filter to reduce noise. Ensure the power supply voltage is within the recommended range of 2.7V to 5.5V.
  • The ADM660ARZ-REEL7 can handle input signals up to ±5V. However, for optimal performance, it's recommended to keep the input signal range between ±2V to ±3V to minimize distortion and ensure accurate conversion.
  • To optimize the ADM660ARZ-REEL7 for low-power operation, consider using a lower clock frequency, reducing the input signal amplitude, and using the power-down mode when not in use. Additionally, use a low-power mode for the ADC, such as the 'Nap' mode, to reduce power consumption.
  • The recommended clock frequency for the ADM660ARZ-REEL7 is between 1MHz to 20MHz. However, the optimal clock frequency depends on the specific application and the desired conversion rate. A higher clock frequency can provide faster conversion rates, but may also increase power consumption.
