ADM7150ACPZ-5.0-R7 - Analog Devices

Description: 800 mA Ultralow Noise, High PSRR, RF Linear Regulator

Download ADM7150ACPZ-5.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

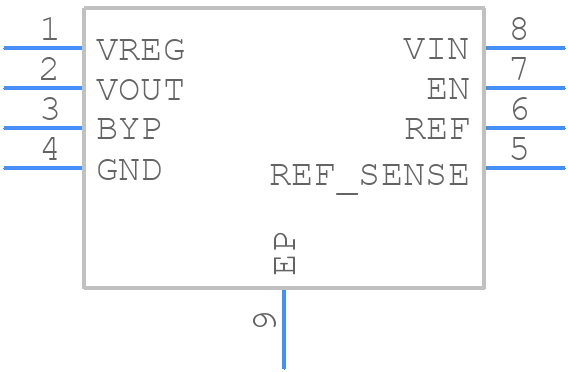

Symbol
ADM7150ACPZ-5.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM7150ACPZ-5.0-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-11 (LFCSP_WD)
click to zoom
3D Models
ADM7150ACPZ-5.0-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-11 (LFCSP_WD)
click to zoom

ADM7150ACPZ-5.0-R7 Details

  • Manufacturer Part Number:

    ADM7150ACPZ-5.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-229WEED, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    1 V

  • Dropout Voltage1-Nom:

    1.2 V

  • Input Voltage Absolute-Max:

    18 V

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00575%

  • Load Regulation-Max:

    0.05%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.8 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Technology:

    PMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

ADM7150ACPZ-5.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM7150ACPZ-5.0-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the device away from high-current or high-frequency signals.
  • To ensure stability, make sure to follow the recommended capacitor values and types, and keep the input and output capacitors close to the device. Also, ensure that the input voltage is within the recommended range, and that the output is not overloaded. Additionally, it's recommended to add a small ceramic capacitor (e.g. 10nF) between the output and ground to improve stability.
  • The maximum output current of the ADM7150ACPZ-5.0-R7 is 1.5A. However, it's recommended to derate the output current based on the ambient temperature and the desired output voltage to ensure reliable operation.
  • The ADM7150ACPZ-5.0-R7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage based on the ambient temperature to ensure reliable operation.
  • To protect the ADM7150ACPZ-5.0-R7 from input voltage transients and surges, it's recommended to add a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, using a fuse or a current limiter can help protect the device from overcurrent conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM7150ACPZ-5.0-R7 Overview

Use the download button to access the ADM7150ACPZ-5.0-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM71, or try a keyword search, such as Linear Regulator ICs
