ADM7154ACPZ-1.8-R7 - Analog Devices

Description: LDO Voltage Regulators 600mA Ultra-Low-Noise High-PSRR LDO

Download ADM7154ACPZ-1.8-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

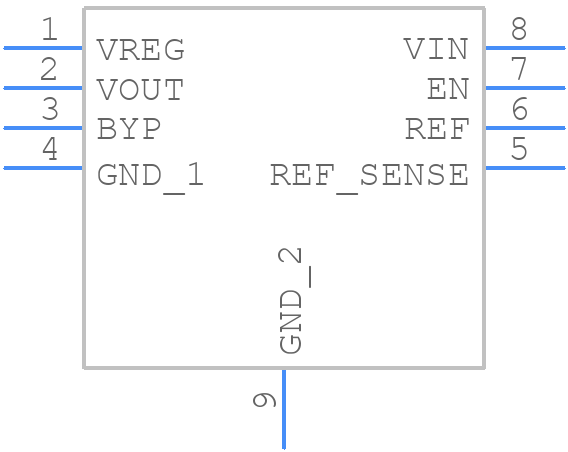

Symbol
ADM7154ACPZ-1.8-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM7154ACPZ-1.8-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-21
click to zoom
3D Models
ADM7154ACPZ-1.8-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-21
click to zoom

ADM7154ACPZ-1.8-R7 Details

  • Manufacturer Part Number:

    ADM7154ACPZ-1.8-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.21 V

  • Dropout Voltage1-Nom:

    0.12 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.0019728%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.6 A

  • Output Voltage1-Max:

    1.836 V

  • Output Voltage1-Min:

    1.764 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    PMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

ADM7154ACPZ-1.8-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM7154ACPZ-1.8-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the device away from high-current carrying traces.
  • To ensure stability, make sure to follow the recommended capacitor values and types, and keep the input and output capacitors close to the device. Also, ensure that the input voltage is within the recommended range, and the output is not overloaded. Additionally, a good PCB layout and proper decoupling can help prevent oscillation.
  • The ADM7154ACPZ-1.8-R7 can handle input voltages up to 12V, but it's recommended to keep the input voltage within the recommended range of 2.7V to 5.5V for optimal performance and to prevent damage to the device.
  • The ADM7154ACPZ-1.8-R7 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. Additionally, the device's performance may degrade at high temperatures, so it's essential to consider this in the design.
  • The output voltage of the ADM7154ACPZ-1.8-R7 is fixed at 1.8V, and it's not adjustable. The device is designed to provide a stable 1.8V output voltage, and it's not recommended to try to adjust the output voltage as it may affect the device's performance and reliability.
