ADM7154ACPZ-2.5-R7 - Analog Devices

Description: ANALOG DEVICES - ADM7154ACPZ-2.5-R7 - LDO, FIXED, 2.5V, 0.6A, LFCSP-8

Download ADM7154ACPZ-2.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

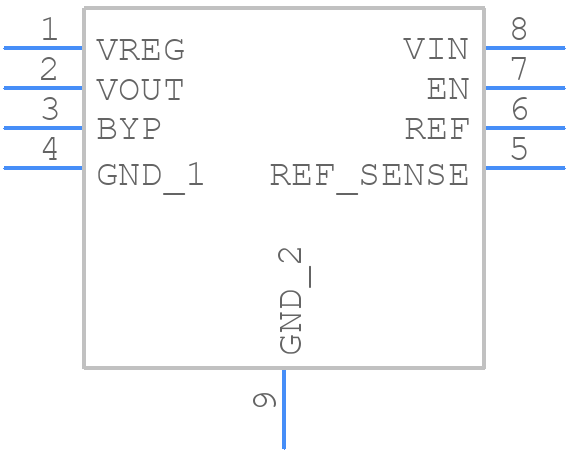

ADM7154ACPZ-2.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM7154ACPZ-2.5-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 Lead LFCSP1
click to zoom
3D Models
ADM7154ACPZ-2.5-R7 - Analog Devices - 3D model - Small Outline No-lead - 8 Lead LFCSP1
click to zoom

ADM7154ACPZ-2.5-R7 Details

  • Manufacturer Part Number:

    ADM7154ACPZ-2.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.21 V

  • Dropout Voltage1-Nom:

    0.12 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00274%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.6 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    PMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

ADM7154ACPZ-2.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM7154ACPZ-2.5-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the device away from high-current carrying traces.
  • To ensure stability, make sure to follow the recommended capacitor values and types, and keep the input and output capacitors close to the device. Also, ensure that the input voltage is within the recommended range and that the output is not overloaded. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The ADM7154ACPZ-2.5-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the thermal management section of the datasheet and to perform thermal analysis to ensure the device operates within its specified temperature range.
  • The ADM7154ACPZ-2.5-R7 is a commercial-grade device, but Analog Devices Inc offers a radiation-hardened version, the ADM7154RH-2.5-R7, which is designed for high-reliability and aerospace applications. It's recommended to consult with Analog Devices Inc or a qualified distributor to determine the suitability of the device for a specific high-reliability or aerospace application.
  • To troubleshoot issues with the ADM7154ACPZ-2.5-R7, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within its specified temperature range. Use an oscilloscope to measure the output voltage and check for any signs of oscillation or noise. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices Inc support if the issue persists.
