ADM7154ARDZ-1.2-R7 - Analog Devices

Description: LDO Voltage Regulators 600mA Ultra-Low-Noise High-PSRR LDO

Download ADM7154ARDZ-1.2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

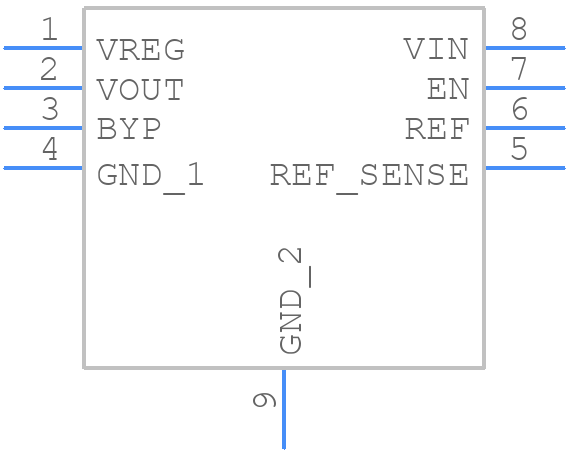

ADM7154ARDZ-1.2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM7154ARDZ-1.2-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-1
click to zoom
3D Models
ADM7154ARDZ-1.2-R7 - Analog Devices - 3D model - Small Outline Packages - RD-8-1
click to zoom

ADM7154ARDZ-1.2-R7 Details

  • Manufacturer Part Number:

    ADM7154ARDZ-1.2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.21 V

  • Dropout Voltage1-Nom:

    0.12 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.0013152%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.6 A

  • Output Voltage1-Max:

    1.224 V

  • Output Voltage1-Min:

    1.176 V

  • Output Voltage1-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    PMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

ADM7154ARDZ-1.2-R7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADM7154ARDZ-1.2-R7 can be found in the Analog Devices application note AN-1079, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The output voltage tolerance of the ADM7154ARDZ-1.2-R7 can be calculated by considering the initial accuracy, temperature coefficient, and line regulation specifications provided in the datasheet. A detailed calculation example can be found in the Analog Devices application note AN-1149.
  • The maximum input voltage that can be applied to the ADM7154ARDZ-1.2-R7 is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
  • To ensure the ADM7154ARDZ-1.2-R7 is stable and reliable in your design, follow the recommended operating conditions, PCB layout guidelines, and component selection guidelines provided in the datasheet and application notes. Additionally, perform thorough testing and validation of your design to ensure it meets the required specifications and standards.
  • The ADM7154ARDZ-1.2-R7 is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. Consult the datasheet and application notes for guidance on thermal management and derating, and consider using a heat sink or thermal interface material if necessary.
