ADM7171ACPZ-2.5-R7 - Analog Devices

Description: LDO Voltage Regulators 1A Hi PSRR FT L DO 2.5Vo

Download ADM7171ACPZ-2.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

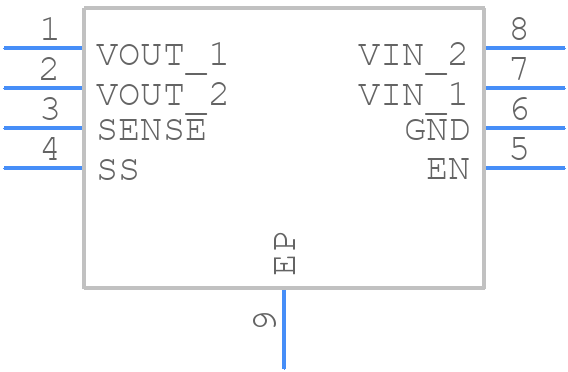

ADM7171ACPZ-2.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM7171ACPZ-2.5-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP 3x3
click to zoom
3D Models
ADM7171ACPZ-2.5-R7 - Analog Devices - 3D model - Small Outline No-lead - LFCSP 3x3
click to zoom

ADM7171ACPZ-2.5-R7 Details

  • Manufacturer Part Number:

    ADM7171ACPZ-2.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00875%

  • Load Regulation-Max:

    0.01%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    2.5375 V

  • Output Voltage1-Min:

    2.4625 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADM7171ACPZ-2.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM7171ACPZ-2.5-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended capacitor values and types in the datasheet, and ensure that the output capacitor is placed close to the device. Additionally, use a low-ESR capacitor for the output capacitor and avoid using ceramic capacitors with high ESL.
  • The ADM7171ACPZ-2.5-R7 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.5V to 5.5V for optimal performance and reliability.
  • The ADM7171ACPZ-2.5-R7 is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
  • To troubleshoot issues with the ADM7171ACPZ-2.5-R7, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise and oscillations, and consult the datasheet and application notes for guidance.
