ADM8660ANZ - Analog Devices

Description: ADM8660ANZ, Charge Pump Inverting, -7 → -1.5 V, 8-Pin, PDIP

Download ADM8660ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

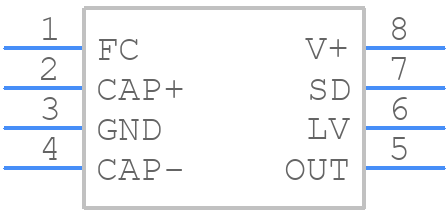

ADM8660ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8660ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8
click to zoom
3D Models
ADM8660ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8
click to zoom

ADM8660ANZ Details

  • Manufacturer Part Number:

    ADM8660ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    7 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    14 V

  • Output Voltage-Min:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    4.5 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    120 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADM8660ANZ Frequently Asked Questions (FAQs)

  • The ADM8660ANZ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce EMI.
  • To optimize power supply decoupling, use a combination of ceramic and electrolytic capacitors with different values to cover a wide range of frequencies. Place the capacitors close to the device's power pins, and use a low-ESR capacitor for the output capacitor.
  • The ADM8660ANZ is rated for operation from -40°C to +125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. It is recommended to consult the datasheet and application notes for more information.
  • To troubleshoot common issues, start by checking the power supply and decoupling, then verify the input and output connections and signal integrity. Use an oscilloscope to check for oscillations or instability, and consult the datasheet and application notes for troubleshooting guides.
  • The ADM8660ANZ is a high-reliability device, but it is essential to follow the recommended design and layout guidelines, and to consult the datasheet and application notes for specific guidance on using the device in high-reliability or safety-critical applications.
