ADM8660ARZ-REEL - Analog Devices

Description: Switching Voltage Regulators CHARGE PUMPED INVERTER W/SHUTDOWN I.C.

Download ADM8660ARZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

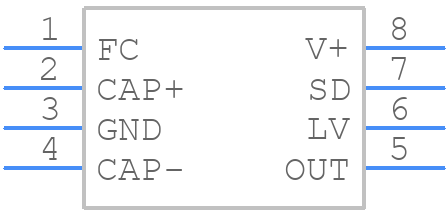

Symbol
ADM8660ARZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8660ARZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADM8660ARZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADM8660ARZ-REEL Details

  • Manufacturer Part Number:

    ADM8660ARZ-REEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    7 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    14 V

  • Output Voltage-Min:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    120 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM8660ARZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM8660ARZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded enclosure and minimizing the length of the input and output traces can help reduce EMI.
  • To ensure proper powering and decoupling of the ADM8660ARZ-REEL, use a high-quality power supply with low ripple and noise, and decouple the device with a 10uF capacitor between the VCC and GND pins. Additionally, use a 0.1uF capacitor between the VCC and AVCC pins for analog power supply decoupling.
  • The ADM8660ARZ-REEL has an operating temperature range of -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to +85°C for optimal performance.
  • To troubleshoot issues with the ADM8660ARZ-REEL, start by checking the power supply and decoupling, then verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB. If issues persist, consult the datasheet and application notes for further guidance.
  • The ADM8660ARZ-REEL is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, consider using a device with a higher reliability rating, such as a device with a MIL-PRF-38535 or AEC-Q100 qualification.
