ADM8832ACPZ - Analog Devices

Description: ADM8832ACPZ, Charge Pump Inverting, Step Up, -10.2 V, 15.3 V, 5.1 V, 20-Pin, LFCSP EP

Download ADM8832ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

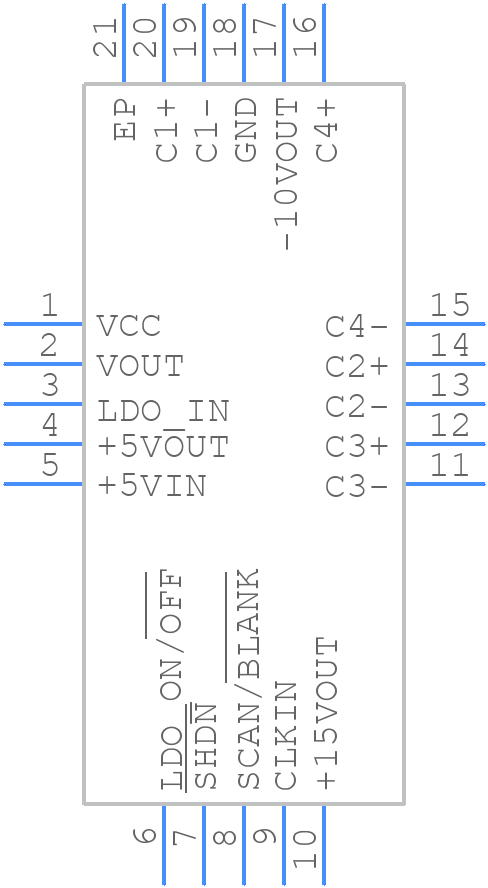

ADM8832ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8832ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20 (LFCSP)
click to zoom
3D Models
ADM8832ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-20 (LFCSP)
click to zoom

ADM8832ACPZ Details

  • Manufacturer Part Number:

    ADM8832ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.008 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    5 V

  • Output Voltage-Nom:

    5.1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    TRIPLER

  • Switching Frequency-Max:

    140 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADM8832ACPZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADM8832 can be found in the application note AN-1369, which provides guidelines for PCB layout, component placement, and thermal management.
  • The ADM8832 is a highly configurable device, and the configuration process can be complex. It is recommended to use the Analog Devices' ADIsimPower tool, which provides a graphical user interface to configure the ADM8832 and generate the required configuration data.
  • The ADM8832 is rated for operation at ambient temperatures up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device's thermal performance can be affected by the PCB layout, component placement, and cooling mechanisms.
  • While the ADM8832 is optimized for 5V or 3.3V input voltages, it can operate with input voltages ranging from 2.7V to 5.5V. However, the device's performance and functionality may be affected, and it is recommended to consult with Analog Devices' technical support for specific guidance.
  • Troubleshooting issues with the ADM8832 can be complex and require a systematic approach. It is recommended to consult the device's datasheet, application notes, and user guides, as well as Analog Devices' technical support resources and FAQs.
