ADM8843ACPZ-REEL7 - Analog Devices

Description: LED Driver IC 4 Output DC DC Regulator Switched Capacitor (Charge Pump) PWM Dimming 20mA 16-LFCSP-VQ (3x3)

Download ADM8843ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

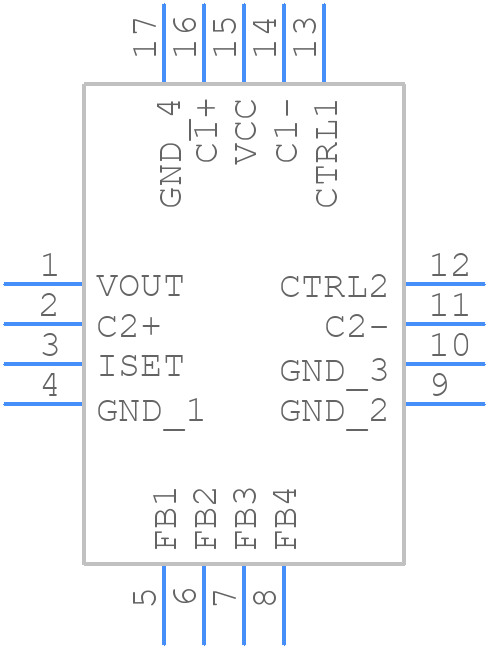

ADM8843ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8843ACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-27_2022
click to zoom
3D Models
ADM8843ACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-27_2022
click to zoom

ADM8843ACPZ-REEL7 Details

  • Manufacturer Part Number:

    ADM8843ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-27

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.6 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADM8843ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM8843ACPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADM8843ACPZ-REEL7 requires a clean and stable power supply. Use a high-quality voltage regulator and decouple the power pins with 10uF and 100nF capacitors. Place the decoupling capacitors as close to the power pins as possible.
  • The ADM8843ACPZ-REEL7 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • To troubleshoot issues with the ADM8843ACPZ-REEL7, start by verifying the power supply and decoupling. Check the input signals and ensure they are within the specified range. Use an oscilloscope to monitor the output signals and verify they are correct. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The ADM8843ACPZ-REEL7 is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. Consult with Analog Devices Inc. or a qualified reliability engineer to determine the device's suitability for your specific application.
