ADMV1012AEZ - Analog Devices

Description: Up-Down Converters 17.5 GHz to 24 GHz, GaAs, MMIC, I/Q Downconverter

Download ADMV1012AEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

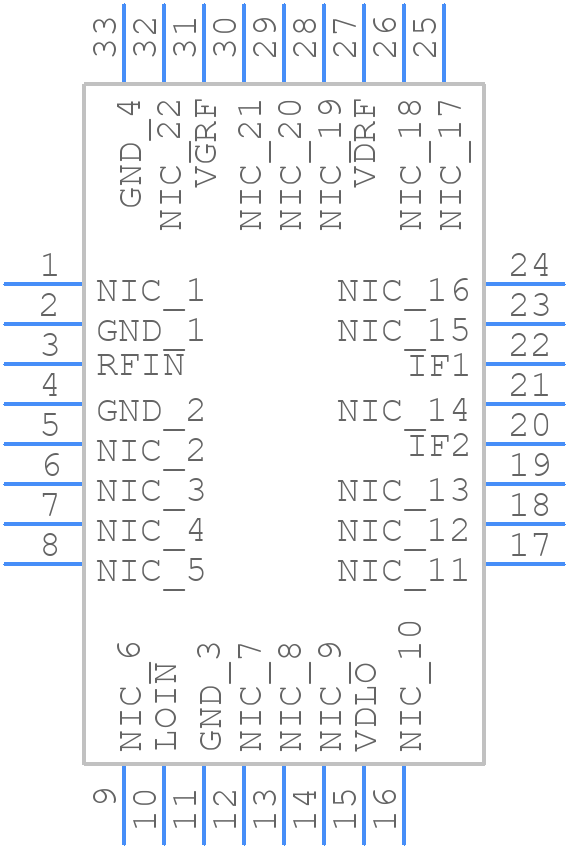

ADMV1012AEZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADMV1012AEZ - Analog Devices PCB footprint - Other - Other - ADMV1012AEZ-5
click to zoom
3D Models
ADMV1012AEZ - Analog Devices - 3D model - Other - ADMV1012AEZ-5
click to zoom

ADMV1012AEZ Details

  • Manufacturer Part Number:

    ADMV1012AEZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    E-32-1

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Down Conversion Gain-Min:

    10.5 dB

  • IF Frequency-Max:

    3500 MHz

  • IF Frequency-Min:

    2500 MHz

  • Input Power-Min (CW):

    15 dBm

  • LO Tunable:

    YES

  • Mounting Feature:

    SURFACE MOUNT

  • Noise Figure-Max:

    4 dB

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    3 V

  • RF Input Frequency-Max:

    24000 MHz

  • RF Input Frequency-Min:

    17500 MHz

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Surface Mount:

    YES

  • Technology:

    GAAS

ADMV1012AEZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADMV1012AEZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, make sure to connect the VPOS and VNEG pins to a stable voltage source, and decouple them with capacitors to ground. The recommended bias voltage is between 4.5V and 5.5V for VPOS and -4.5V to -5.5V for VNEG. Also, ensure that the input signals are within the recommended common-mode voltage range.
  • The ADMV1012AEZ can handle input signal frequencies up to 1 GHz. However, the device's performance may degrade at higher frequencies due to internal parasitics and layout limitations. It's essential to evaluate the device's performance at the desired frequency and optimize the PCB layout accordingly.
  • To minimize EMI, use a shielded enclosure, and ensure that the PCB layout is optimized for minimal radiation. Use a common-mode choke or ferrite bead on the input and output lines to reduce radiation. Additionally, use a low-pass filter or shielding on the input and output signals to reduce high-frequency noise.
  • The recommended operating temperature range for the ADMV1012AEZ is -40°C to +85°C. However, the device can operate up to +125°C with reduced performance and reliability. It's essential to ensure that the device is operated within the recommended temperature range to maintain optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADMV1012AEZ Overview

Use the download button to access the ADMV1012AEZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADMV1, or try a keyword search, such as RF/Microwave Up/Down Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
