ADMV8432ACPZ-R5 - Analog Devices

Description: 15.1 GHz to 32 GHz, Tunable Band-Pass Filter

Download ADMV8432ACPZ-R5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

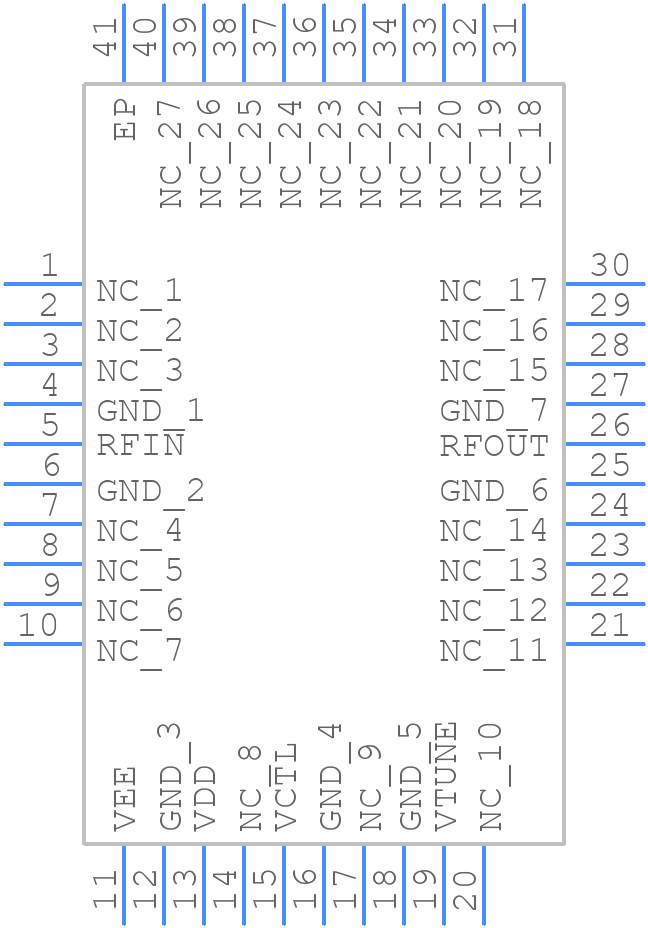

ADMV8432ACPZ-R5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADMV8432ACPZ-R5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADMV8432ACPZ-R5
click to zoom
3D Models
ADMV8432ACPZ-R5 - Analog Devices - 3D model - Quad Flat No-Lead - ADMV8432ACPZ-R5
click to zoom

ADMV8432ACPZ-R5 Details

  • Manufacturer Part Number:

    ADMV8432ACPZ-R5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-27

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Filter Type:

    TUNABLE BPF

ADMV8432ACPZ-R5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADMV8432ACPZ-R5 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-1369 for more details.
  • The ADMV8432ACPZ-R5 requires a single 5V supply voltage. Ensure that the supply voltage is well-regulated and decoupled with a 10uF capacitor. The device also requires a bias voltage (VBIAS) of 2.5V, which can be generated using a voltage divider or a dedicated voltage reference. Refer to the datasheet for more information on biasing and decoupling.
  • The ADMV8432ACPZ-R5 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the user should ensure that the device is operated within the recommended temperature range for optimal performance.
  • Common issues with the ADMV8432ACPZ-R5 can be troubleshooted by checking the PCB layout, ensuring proper biasing and decoupling, and verifying that the input and output signals are within the recommended specifications. Oscillations or instability can be caused by poor PCB layout, inadequate decoupling, or incorrect biasing. Refer to the datasheet and application notes for more troubleshooting tips.
  • The ADMV8432ACPZ-R5 is not a radiation-hardened device and is not suitable for use in high-radiation environments. If radiation hardness is required, Analog Devices offers other products that are specifically designed and tested for radiation-hardened applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADMV8432ACPZ-R5 Overview

Use the download button to access the ADMV8432ACPZ-R5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADMV8, or try a keyword search, such as Tunable Filters
