ADMV8432ACPZ - Analog Devices

Description: Band Pass Filter IC Band Pass Order 16GHz ~ 32GHz 40-LFCSP (6x6)

Download ADMV8432ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

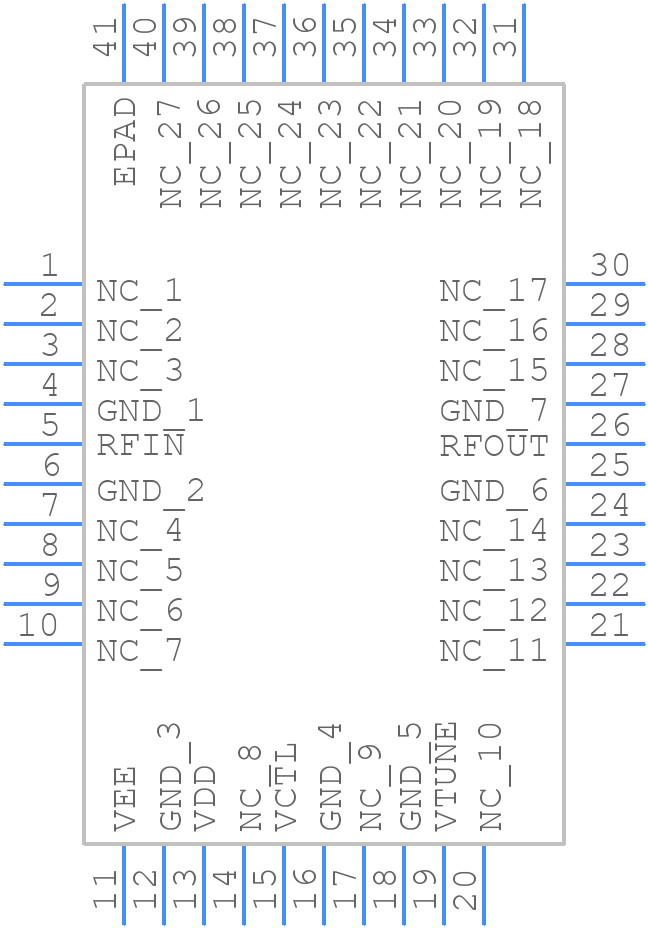

ADMV8432ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADMV8432ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.75 mm Package Height (CP-40-27)
click to zoom
3D Models
ADMV8432ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.75 mm Package Height (CP-40-27)
click to zoom

ADMV8432ACPZ Details

  • Manufacturer Part Number:

    ADMV8432ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP, 40 PIN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-27

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 3dB Bandwidth:

    17%

  • Average Input Power:

    0.501 W

  • Filter Type:

    TUNABLE BPF

  • Height:

    0.8 mm

  • Length:

    6.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Tuning Frequency-Max:

    29.5 MHz

  • Tuning Frequency-Min:

    24.2 MHz

  • Width:

    6.1 mm

ADMV8432ACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure the VCC pin is connected to a stable 3.3V or 5V power supply, and the VEE pin is connected to a stable -3.3V or -5V power supply. Also, ensure the input common-mode voltage is within the recommended range.
  • The maximum input signal amplitude is ±10V, but it's recommended to keep the input signal amplitude below ±5V to ensure optimal performance and prevent damage to the device.
  • Use a low-pass filter at the output, and ensure the PCB layout is optimized for minimal noise coupling. Also, use a high-quality power supply with low ripple and noise.
  • The ADMV8432ACPZ is rated for operation up to 125°C, but the performance may degrade at high temperatures. Ensure proper heat sinking and thermal management to maintain optimal performance.
