ADN2531ACPZ-R7 - Analog Devices

Description: Differential Laser Diode Driver

Download ADN2531ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

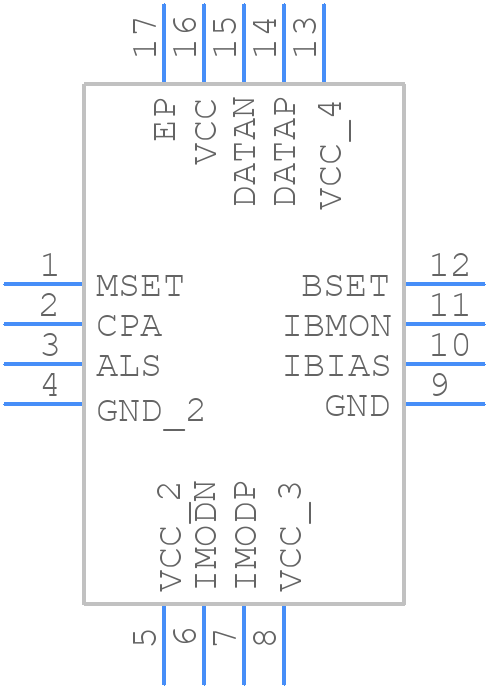

ADN2531ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2531ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN50P300X300X90-17N
click to zoom
3D Models
ADN2531ACPZ-R7 - Analog Devices - 3D model - Other - QFN50P300X300X90-17N
click to zoom

ADN2531ACPZ-R7 Details

  • Manufacturer Part Number:

    ADN2531ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADN2531ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN2531ACPZ-R7 involves keeping the signal paths short, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure proper biasing, the ADN2531ACPZ-R7 requires a single 3.3V power supply, and the VCC pin should be decoupled with a 0.1uF capacitor to ground. The device also requires a bias voltage on the VBIAS pin, which should be set to 2.5V using a voltage divider or a dedicated voltage reference.
  • The ADN2531ACPZ-R7 is capable of supporting data rates up to 12.5 Gbps, making it suitable for high-speed applications such as 10GBASE-KR and 10GBASE-LRM.
  • To troubleshoot issues with the ADN2531ACPZ-R7, start by verifying the power supply and bias voltage levels. Check for proper termination and signal integrity on the high-speed data lines. Use an oscilloscope to verify the signal quality and check for any signs of signal degradation or distortion. If issues persist, consult the datasheet and application notes for further guidance.
  • The ADN2531ACPZ-R7 is designed to be compatible with other high-speed transceivers that comply with the IEEE 802.3ap standard. However, it's recommended to verify compatibility with specific transceivers and systems to ensure optimal performance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADN2531ACPZ-R7 Overview

Use the download button to access the ADN2531ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN25, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
