ADN2807ACPZ - Analog Devices

Description: ADN2807ACPZ, PLL Clock Synthesizer, 48-Pin LFCSP

Download ADN2807ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

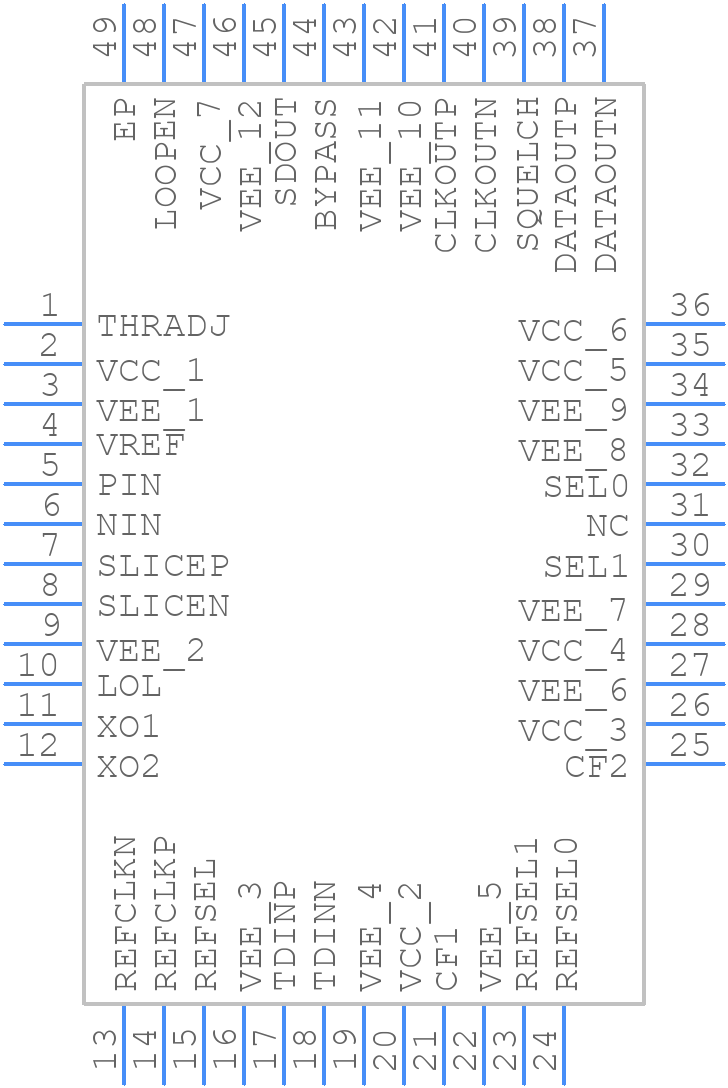

ADN2807ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2807ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48 (LFCSP)
click to zoom
3D Models
ADN2807ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-48 (LFCSP)
click to zoom

ADN2807ACPZ Details

  • Manufacturer Part Number:

    ADN2807ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Applications:

    SDH; SONET

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.215 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    ATM/SONET/SDH CLOCK RECOVERY CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ADN2807ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN2807ACPZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure the accuracy of the output current of the ADN2807ACPZ, it is essential to follow the recommended PCB layout, use a high-accuracy external resistor (RSET), and keep the device within its specified operating temperature range. Additionally, the output current should be measured using a high-accuracy current sense resistor and an accurate ADC.
  • The maximum cable length that can be driven by the ADN2807ACPZ depends on the specific application and the type of cable used. However, as a general guideline, the device can drive up to 100 meters of Category 5e or higher cable. It is recommended to consult the datasheet and application notes for more information on cable driving capabilities.
  • To troubleshoot issues with the ADN2807ACPZ, start by checking the power supply voltage, ensuring that it is within the specified range. Then, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and look for any signs of distortion or noise. Consult the datasheet and application notes for more troubleshooting tips and guidelines.
  • Yes, the ADN2807ACPZ is compatible with industrial temperature ranges. The device is specified to operate from -40°C to +85°C, making it suitable for use in industrial applications. However, it is essential to ensure that the device is properly derated for operation at high temperatures and that the PCB is designed to withstand the operating temperature range.
