ADN2848ACPZ-32 - Analog Devices

Description: 3.3 V Dual-Loop 50 Mbps to 1.25 Gbps Laser Diode Driver

Download ADN2848ACPZ-32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

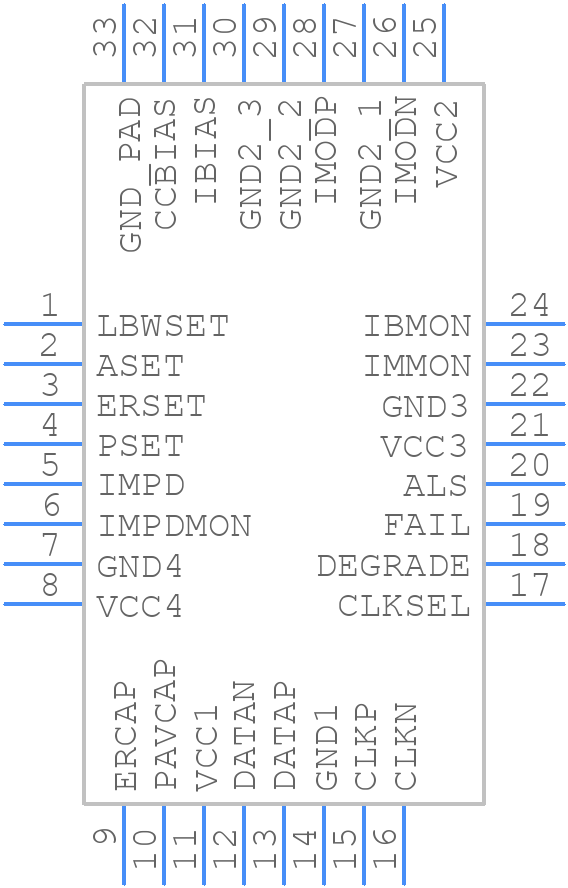

ADN2848ACPZ-32 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2848ACPZ-32 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-7) [LFCSP_WQ]
click to zoom
3D Models
ADN2848ACPZ-32 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-7) [LFCSP_WQ]
click to zoom

ADN2848ACPZ-32 Details

  • Manufacturer Part Number:

    ADN2848ACPZ-32

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADN2848ACPZ-32 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN2848ACPZ-32 involves keeping the signal paths short, using a solid ground plane, and separating the analog and digital sections of the board. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin to GND with a 0.1uF capacitor.
  • To ensure proper powering and decoupling of the ADN2848ACPZ-32, use a low-noise power supply, decouple the VCC pin to GND with a 0.1uF capacitor, and add a 10uF capacitor in parallel to further reduce noise. Also, ensure that the power supply can provide enough current to support the device's operating current.
  • The maximum cable length supported by the ADN2848ACPZ-32 depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 3.2 Gbps. For longer cable lengths, it's recommended to use repeaters or active cables.
  • To troubleshoot issues with the ADN2848ACPZ-32, start by checking the power supply and decoupling, then verify the signal integrity and clock frequency. Use an oscilloscope to check the signal waveforms and ensure that they meet the device's specifications. Also, check the device's temperature and ensure it's within the recommended operating range.
  • The ADN2848ACPZ-32 is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. For high-temperature applications, consider using a heat sink or a thermally-enhanced package. Always check the device's specifications and consult with Analog Devices Inc. for specific guidance on high-temperature operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN2848ACPZ-32 Overview

Use the download button to access the ADN2848ACPZ-32 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN28, or try a keyword search, such as Other Interface ICs
