ADN2871ACPZ - Analog Devices

Description: Laser Driver VCSEL/FP/DFB 4.25Gbps 24-Pin LFCSP EP Tray

Download ADN2871ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

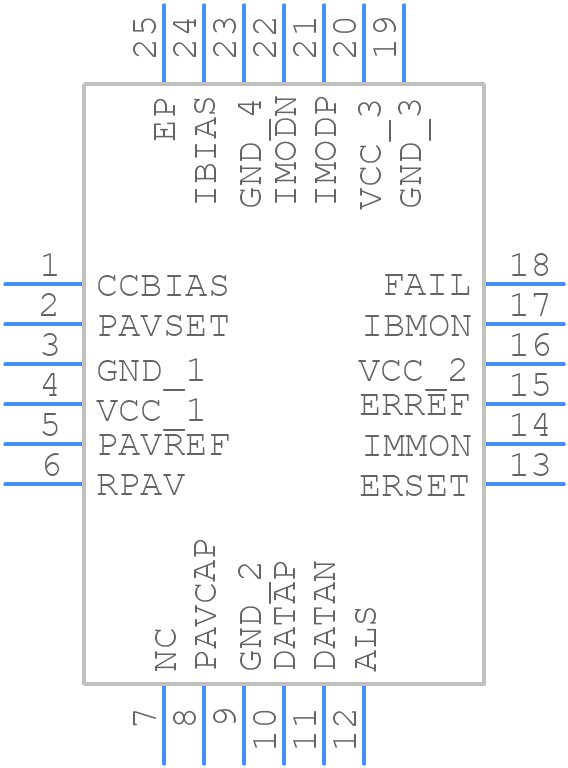

ADN2871ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2871ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-14
click to zoom
3D Models
ADN2871ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-14
click to zoom

ADN2871ACPZ Details

  • Manufacturer Part Number:

    ADN2871ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADN2871ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN2871ACPZ involves keeping the high-frequency signals away from the low-frequency signals, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure the ADN2871ACPZ is properly biased, make sure to follow the recommended biasing scheme in the datasheet. This includes setting the VCC pin to 3.3V or 5V, and the VEE pin to 0V. Additionally, the datasheet provides a recommended biasing circuit that includes a voltage regulator and decoupling capacitors.
  • The ADN2871ACPZ is capable of supporting data rates up to 12.5 Gbps. However, the actual data rate that can be achieved depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission with the ADN2871ACPZ.
  • To troubleshoot issues with the ADN2871ACPZ, start by checking the power supply and biasing scheme to ensure they are correct. Then, use an oscilloscope to check the signal quality and integrity. If the issue persists, consult the datasheet and application notes for troubleshooting guides and FAQs. Additionally, Analog Devices provides technical support and resources to help troubleshoot and resolve issues with their products.
  • The ADN2871ACPZ is a high-speed transceiver that is compatible with other high-speed transceivers that operate at similar data rates and voltage levels. However, it's recommended to consult the datasheet and application notes to ensure compatibility with specific transceivers and systems. Additionally, Analog Devices provides compatibility information and resources to help ensure seamless integration with other high-speed transceivers.
