ADN4604ASVZ - Analog Devices

Description: Analog Devices ADN4604ASVZ, Crosspoint Switch 16 x 16 Fiber Optic Network Switching, Video 3.3 V, 100-Pin TQFP

Download ADN4604ASVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADN4604ASVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

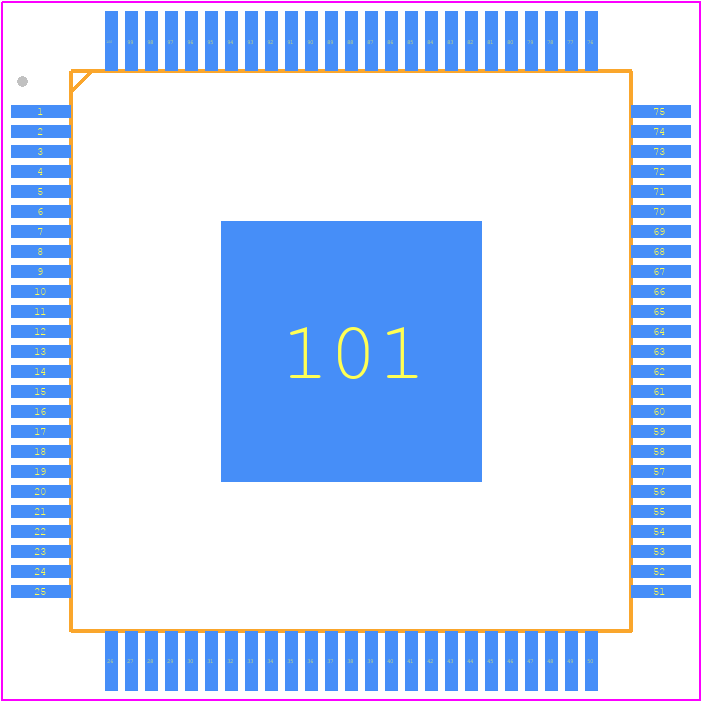

ADN4604ASVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-100-1 (TQFP)
click to zoom
3D Models
ADN4604ASVZ - Analog Devices - 3D model - Quad Flat Packages - SV-100-1 (TQFP)
click to zoom

ADN4604ASVZ Details

  • Manufacturer Part Number:

    ADN4604ASVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    16 X 16 MM, ROHS COMPLIANT, MS-026AED-HD, TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    SV-100-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • On-state Resistance-Max (Ron):

    56 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    540 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

ADN4604ASVZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, direct traces for the input and output signals, and avoid routing signals under the device.
  • Use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and a 10 μF capacitor between AVCC and AGND. Place the capacitors as close to the device as possible. Ensure the power supply is clean and well-regulated, and use a low-dropout regulator if necessary.
  • The maximum clock frequency is 100 MHz, but it depends on the specific application and the quality of the clock signal. Ensure the clock signal is clean and has a low jitter to achieve optimal performance.
  • For differential input mode, connect the positive input signal to IN+ and the negative input signal to IN-. For single-ended input mode, connect the input signal to IN+ and tie IN- to GND or a reference voltage. Consult the datasheet for specific pin connections and configuration details.
  • Use a 50 Ω back-termination resistor in series with the output pin to ensure proper signal integrity and minimize reflections. The termination scheme may vary depending on the specific application and output load.
