ADN4620BRIZ-RL - Analog Devices

Description: 7.5 kV RMS/3.75 kV RMS, Dual-Channel LVDS 2.5 Gigabit Isolator (0 Reverse Channels)

Download ADN4620BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

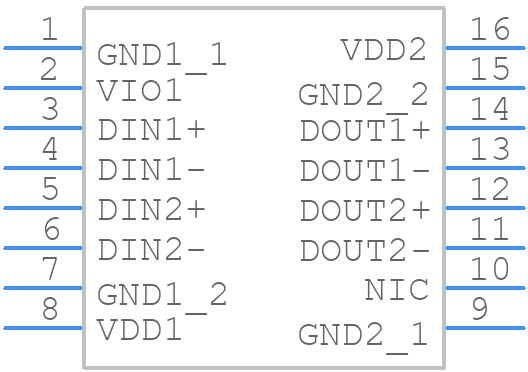

ADN4620BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4620BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-16-3
click to zoom
3D Models
ADN4620BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-16-3
click to zoom

ADN4620BRIZ-RL Details

  • Manufacturer Part Number:

    ADN4620BRIZ-RL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Analog Devices Inc

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    16 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.7

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    10.29 mm

ADN4620BRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADN4620BRIZ-RL. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the signal source. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the ADN4620BRIZ-RL is properly biased, it is recommended to follow the biasing scheme shown in the datasheet. This includes using a 2.5V voltage source for VCC, a 1.8V voltage source for VDD, and a 0.9V voltage source for VBIAS. Additionally, it is recommended to use a low-noise, low-dropout regulator (LDO) to generate the bias voltages.
  • The ADN4620BRIZ-RL is rated for operation over the industrial temperature range of -40°C to +85°C. However, it is recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • To troubleshoot issues with the ADN4620BRIZ-RL, it is recommended to follow a systematic approach. First, verify that the device is properly biased and that the input and output signals are within the recommended specifications. Next, check for any signs of physical damage or contamination on the device or PCB. Finally, use a logic analyzer or oscilloscope to verify the device's output signals and identify any anomalies.
  • Yes, the ADN4620BRIZ-RL is suitable for use in high-reliability or safety-critical applications. However, it is recommended to follow the guidelines provided in the datasheet and to perform thorough testing and validation to ensure the device meets the required specifications and standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4620BRIZ-RL Overview

Use the download button to access the ADN4620BRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
