ADN4650BRSZ - Analog Devices

Description: Digital Isolators 3.75kVrms LVDS Iso 600Mbps Dual Tx or Rx

Download ADN4650BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

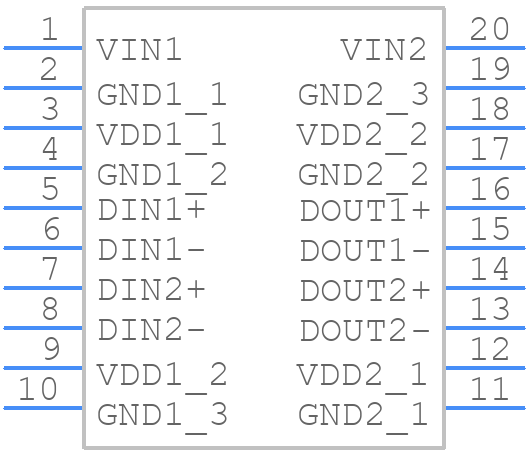

ADN4650BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4650BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADN4650BRSZ - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADN4650BRSZ Details

  • Manufacturer Part Number:

    ADN4650BRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-09-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    ISOLATED LVDS BUFFER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADN4650BRSZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4650BRSZ involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • The ADN4650BRSZ requires a single 3.3V or 5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to ensure that the power supply is stable before applying signals to the device. There are no specific power sequencing requirements for the ADN4650BRSZ.
  • The ADN4650BRSZ is capable of data rates up to 3.2 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe.
  • To troubleshoot issues with the ADN4650BRSZ, start by verifying the power supply and signal integrity. Check for proper termination, signal amplitude, and signal quality. Use oscilloscopes and signal analyzers to debug the signal. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ADN4650BRSZ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. Use thermal pads, heat sinks, or other thermal management techniques to keep the device temperature within the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4650BRSZ Overview

Use the download button to access the ADN4650BRSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Other Interface ICs
